測試機系列 / Testing Machine Series

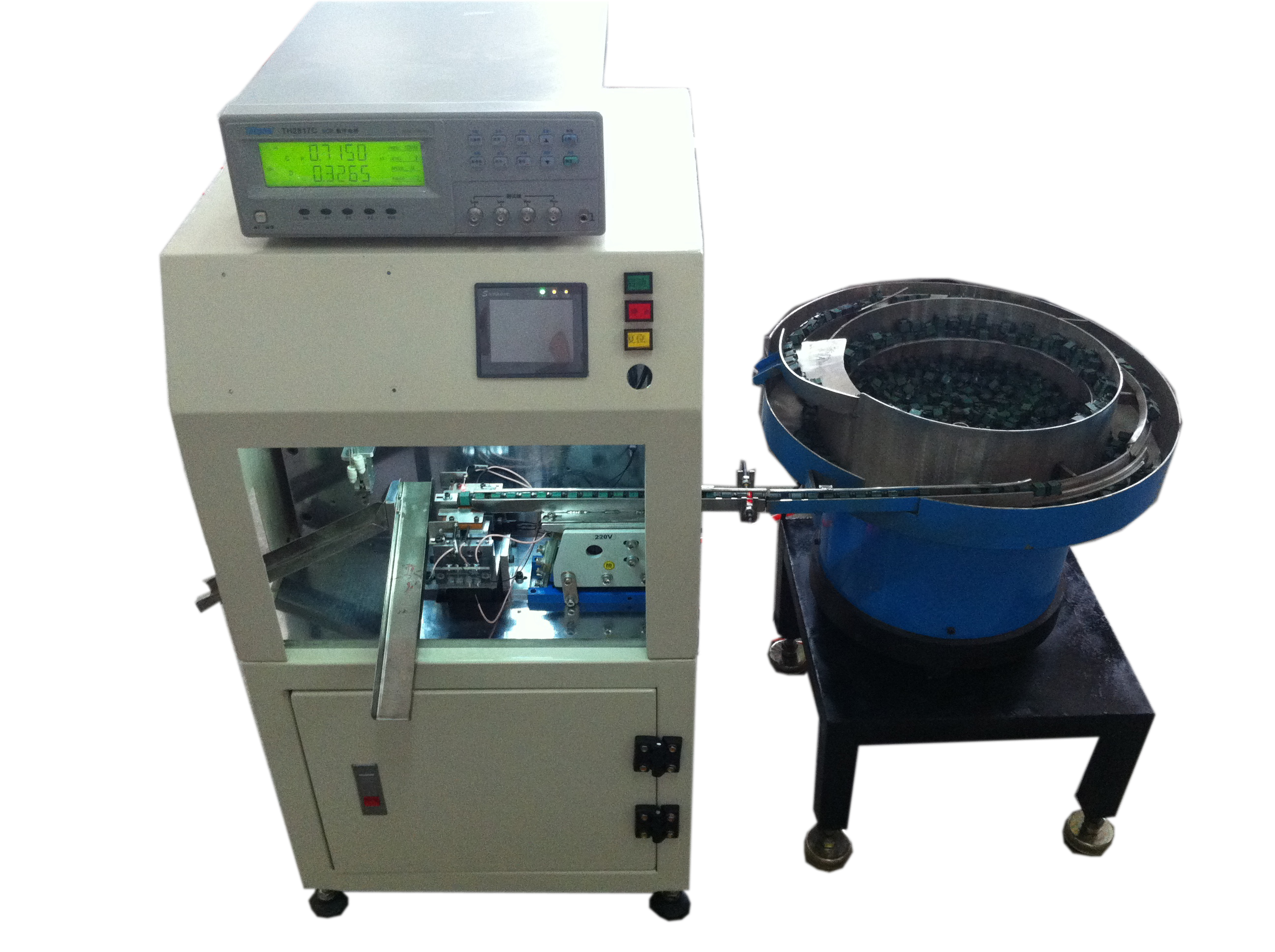

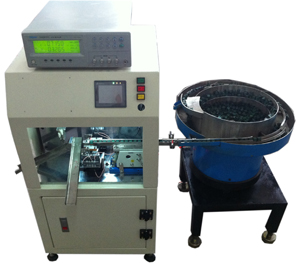

WCE-1011

Fully Auto Inductor Testing Machine
with Bowl Feeder

全自動電感變壓器測試機含振動筒

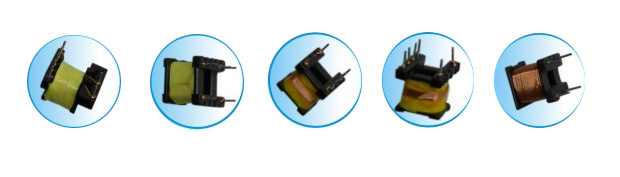

  • 適用於EE卧式、立式電感、變壓器、UU濾波器。
  • 增加振動筒裝置,可自動上料。
  • 可自動上料、測試和退料及NG退料,
    生產效率高成本低。
  • 感應器可偵測軌道是否有上料。
  • 可選擇測電橋/ 綜測。
  • 設備功能穩定,效率高。
  • Suitable for vertical and horizontal transformer inducor & UU filter.
  • Equipped with Vibrating bowl feeder, auto feed and load inductor transformer.
  • Auto feeding, loading, testing and unloading. Function with high efficiency but low costs.
  • Sensor can detect the track when loading core/coil.
  • Selectable for testing bridge / overall testing measurement.
  • Featuring at high productivity, stability and efficiency.
機  型 Model WCE-1011
操作方式 Operation 人機介面 Control Touch Panel interface
控制方式 Control PLC & Servo Motor
氣  壓 Air Pressure 3 kg/cm²
電  源 Electric Source AC 220V 50/60Hz 500W
機體尺寸 Unit Dimension 1000(L) x 500(W) x 1100(H) mm
機體重量 Unit Weight 300 kg

WCE-1013

Fully Auto Relay Testing Machine

全自動繼電器測試機

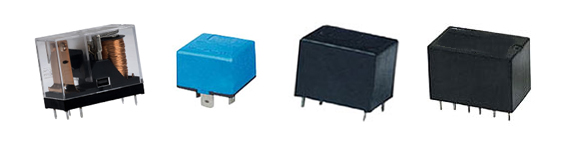

  • 適用繼電器產品 測試,可根據不同的品種訂做。
  • 自動送料、自動測高壓、自動綜合測試。
  • 自動區分良品與不良品。不良品在相應的測試
    位置退出,良品自動裝料。
  • 設備功能穩定,效率高。
  • Dedicated design for relays testing;
    custom-made as customer's model & type
    or relays.
  • Auto loading
  • Auto high voltage testing.
  • Auto sort and mark off GOOD and N.G. If NG tested, auto ejected, and PASS will be auto loaded.
  • Featuring at high productivity, stability and efficiency.
機  型 Model WCE-1013
操作方式 Operation 人機介面 Control Touch Panel interface
控制方式 Control PLC & Servo Motor
氣  壓 Air Pressure 3 kg/cm²
電  源 Electric Source AC200V 50/60Hz 500W
機體尺寸 Unit Dimension 1500(L) x 550(W) x 1100(H) mm
機體重量 Unit Weight 350 kg

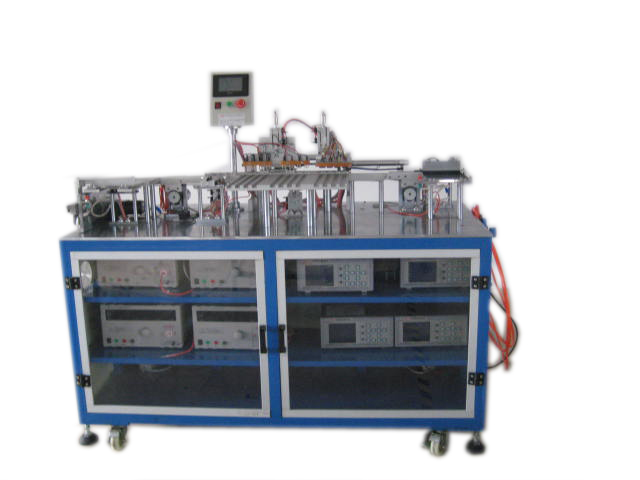

WCE-1018

Fully Auto Transformer Core Taping
& Testing Line

全自動變壓器磁芯包膠帶及測試機 (Custom-Design)

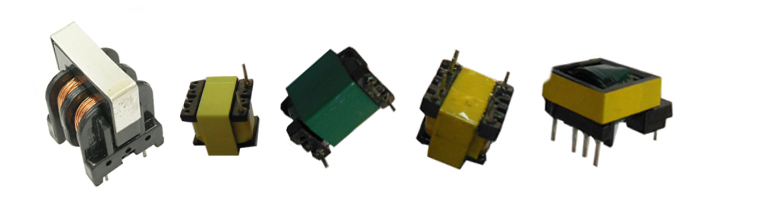

  • 適用產品: 高、低頻變壓器測試。
  • 自動磁芯包膠帶, 輸送帶或周轉盤
    上料, 自動測試, 不良自動退出
  • 良品自動收盤,或輸送帶
    流至下一道工序。
  • 感應器可偵測軌道是否有上料。
  • 可與生產線連線作業。
  • 設備功能穩定,效率高。
  • Suitable for low or high/ vertical
    and horizontal transformer test.
  • Manual load to conveyor, auto
    feeding, Auto testing,NG part auto unloading and PASS part auto sort to tray or conveyor deliver to the next production process.
  • Sensor auto-detects material on the track when loading core/coil.
  • Can be connected to operation & production lines.
  • Featuring at high productivity, stability and efficiency.
  • Optional test paramaters: Surge test; Hipot test, resistance test, Inductance test; leakage test etc.
機  型 Model WCE-1018
操作方式 Operation 人機介面 Control Touch Panel interface
控制方式 Control PLC & Servo Motor
氣  壓 Air Pressure 3 kg/cm²
電  源 Electric Source AC 220V 50/60Hz 500W
機體尺寸 Unit Dimension 1000(L) x 500(W) x 1100(H) mm
機體重量 Unit Weight 300 kg

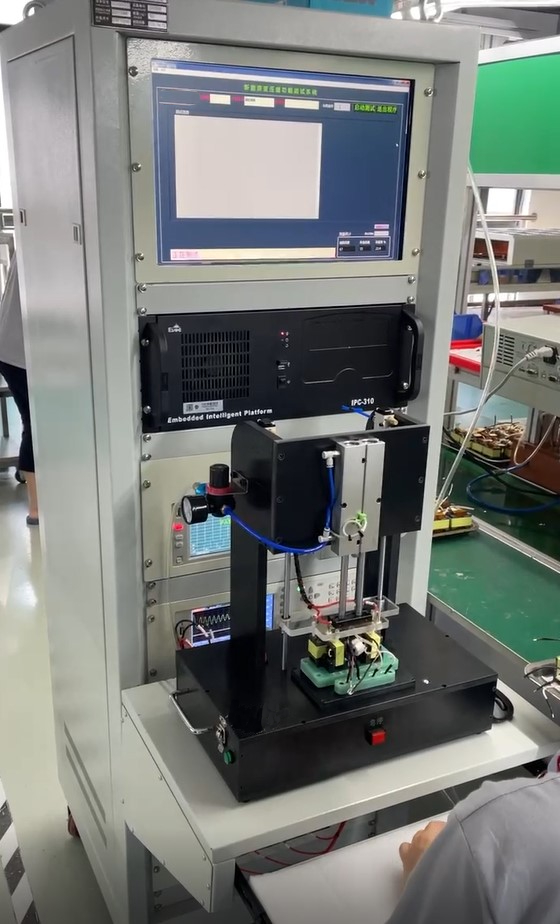

WCE-1022

Combinated testing system

Inductance/ CMN / Automobile electonics

一站式組合測試系統

  • 具有超高性價比,操作簡單,根據企業不同需求,行業特點量身定制專用功能。
  • 高頻變壓器EMI共模測試儀,高頻變壓器RE輻射測試儀,組合多功能測試系統廣泛適用於新能源汽車電子領域.
  • 智能自動生產線採用超級拼裝理念,單站可以獨立工作,多站對接成一條自動生產線。
  • 掃二維碼數據採集管理系統,對產品進行掃碼,數據採集,數據處理,預警,生成相關部門需求的表格數據。
  • 遠程升級,雲端預防,監控自動線實時運作狀態。
  • 設備功能穩定,效率高。
  • Combined test system soution - (1) Inductabce (2) CMN Test (3) Automobile Electonics.
  • One-stop completion of all test items.
  • Test fixture with ID automatic identification function and it can be automatic linked, retrieved and saved test parameters.
  • The test process, test pins, number of test sections of high voltage bridge and comprehesive test parameters can ber edited on the system interface.
  • Save labor, complete seversal test items at one time.
  • Reduce products handling, turnover, multile tests at different test stations.
  • The system directly program controls the parameter settings of the instrument, no required to se the instrument again.
  • User can scan QR code data collection system, automatically analyze production data and trace product test data.
機  型 Model WCE-1022
操作方式 Operation 人機介面 Control Touch Panel interface
控制方式 Control Windows 7
掃碼槍 QR code scanner 1 ;
電  源 Electric Source AC 220V 50/60Hz
機體尺寸 Unit Dimension 1000(L) x 1580(W) x 2100(H) mm
機體重量 Unit Weight TBA

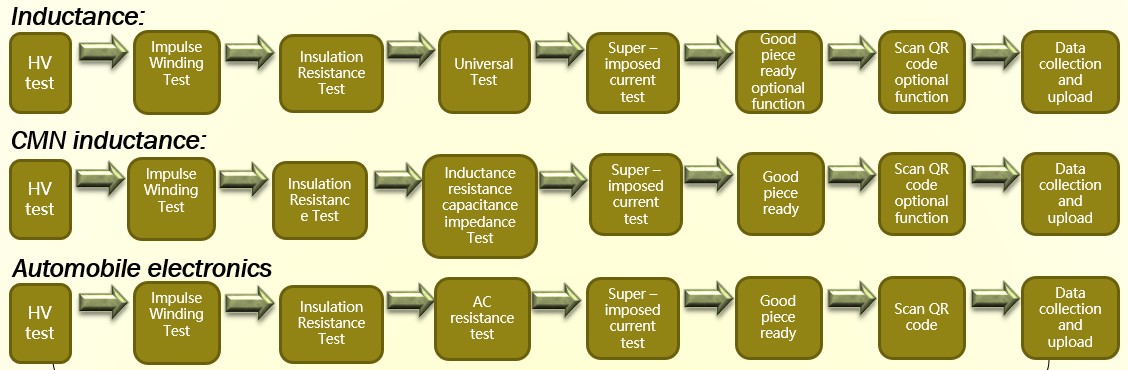

  • Combined test system solution


  • System diagram
  • Specifications and design are subject to change without notice for improvements.
