包膠帶機系列 / Taping Machine Series

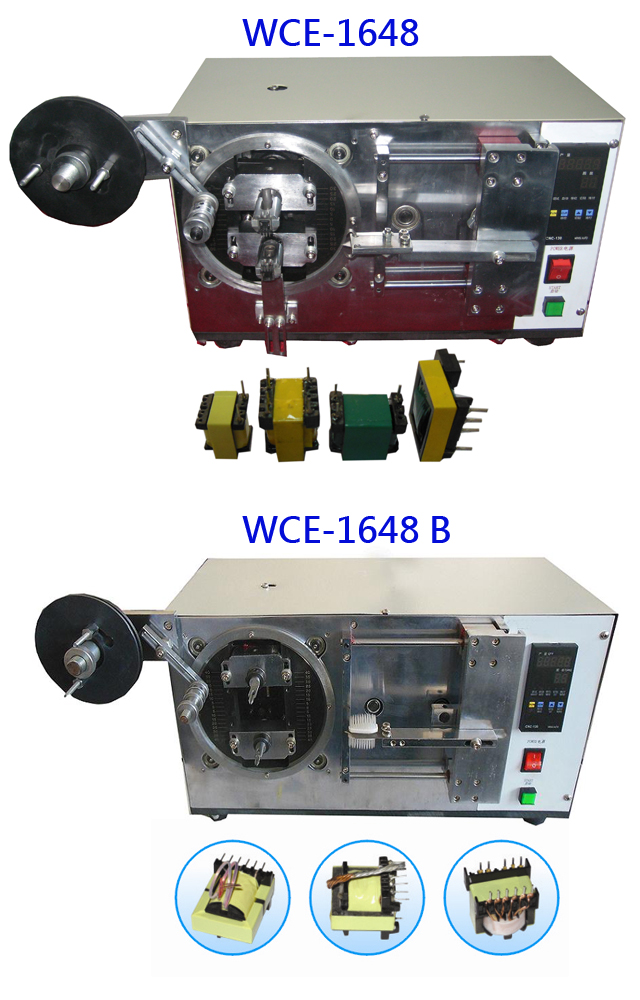

WCE-1648

Auto Coil/Core Taping Machine

自動包膠帶機

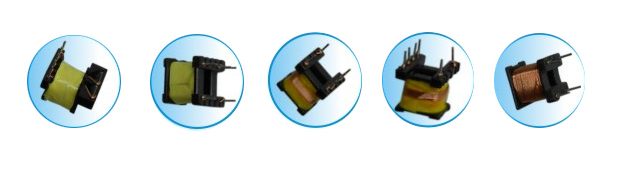

  • 膠帶內圈34mm及77mm均適用。
  • 變壓器適用規格
    WCE-1648: EE10~35;
    WCE-1648A: EE25~48;
    WCE-1648B: EI 35~66。
  • 它也可以包鐵芯的變壓器。
  • 兩軸式包膠帶,膠帶軸心距離自25mm到
    85mm均可調整。
  • 黏膠帶位置可微調,張力及圈數可調整。
  • 不同產品,更換不同治具。
  • Suitable for tape's inner hole
    between 34mm and 77mm.
  • Applied transformer size ranges are
    WCE-1648: EE10~35; WCE-1648A:
    EE25~48; WCE-1648B: EI 35~66.
  • It 's also suitable for ferrite tapping application.
  • Two spindles rotating taping type, pitch can
    be adjusted from 25mm to 85mm.
  • Taping position can be adjusted as well as
    tension force, number of turns etc.
  • Change simple mold for different components.
機  型 Model WCE-1648
工作速度 Cycle Time 1pcs/2sec
電  源 Electric Source AC 220V 50/60Hz
機體尺寸 Unit Dimension 250(L) x 550(W) x 300(H) mm
機體重量 Unit Weight 45 kg

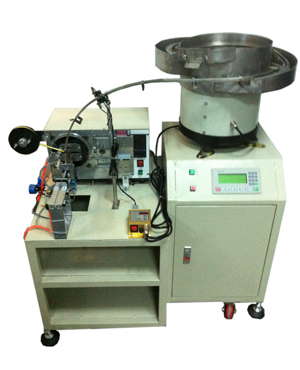

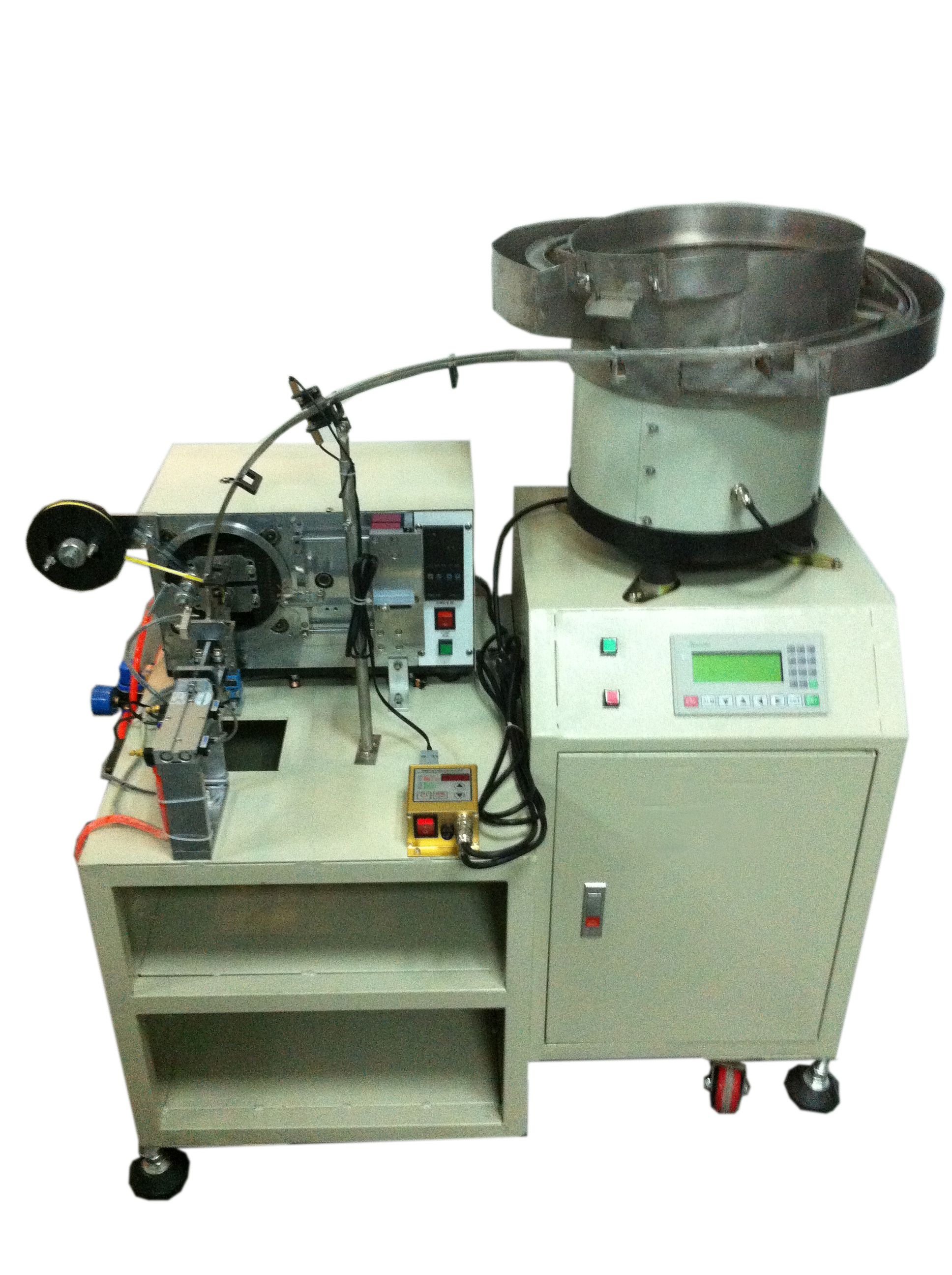

WCE-1648XA

Fully Auto Coil Taping Machine with Bowl
Feeder

全自動包膠帶機含振動筒

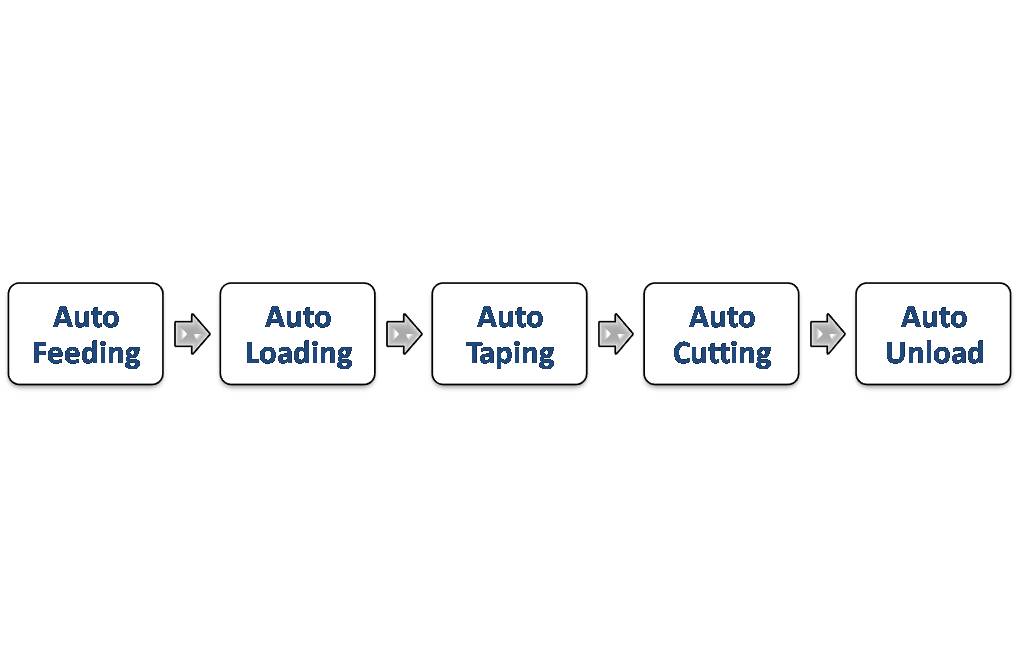

  • 自動上料、包膠帶、切膠帶和退料,
    生產效率高成本低。
  • 感應器可偵測軌道是否有上料。
  • 膠帶內圈34mm及77mm均適用。
  • 變壓器適用規格
    WCE-1648: EE10~35;
    WCE-1648A: EE25~48;
    WCE-1648B: EI 35~66。
  • 兩軸式包膠帶,膠帶軸心距離自
    25mm到85mm均可調整。
  • 黏膠帶位置可微調,張力及圈數可調整。
  • 不同產品,更換不同治具。
  • 在同一台可以剪切各類膠帶。
  • Auto feeding, loading, taping, cutting and unloading function with high efficiency but low costs.
  • Sensor can detect the track when loading coil.
  • Suitable for tape's inner hole between 34mm and 77mm.
  • Transformer size ranges:
    WCE-1648: EE10~35; WCE-1648A: EE25~48; WCE-1648B: EI 35~66.
  • Two spindles rotating taping type, pitch can be adjusted from 25mm to 85mm.
  • Taping position can be adjusted as well as tension force, number of turns etc.
  • Change simple mold for different components.
機  型 Model WCE-1648XA
工作速度 Cycle Time 1800~2200pcs/Hour
電  源 Electric Source AC220V 50/60Hz
機體尺寸 Unit Dimension 1300(L) x 760(W) x 1340(H) mm
機體重量 Unit Weight 300 kg

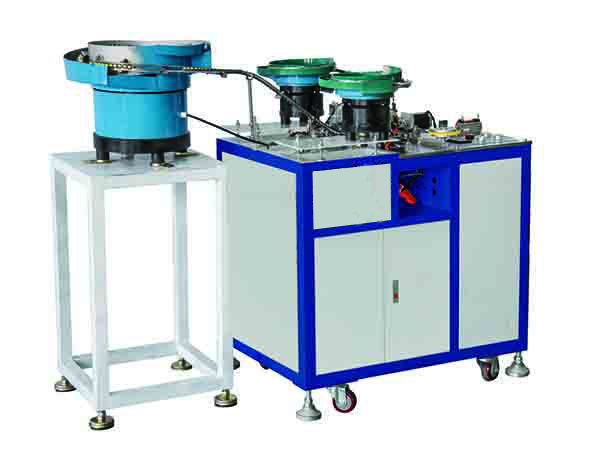

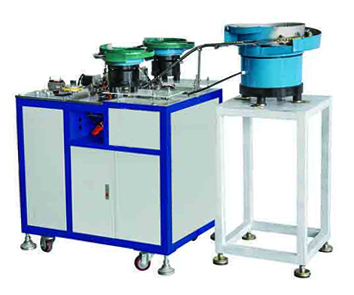

WCE-1025TP

Fully Auto Core Assembly & Taping Machine
With Bowl Feeder

全自動磁芯組裝包膠帶機含振動筒

  • 適合立式、卧式變壓器自動組裝磁芯包膠。
  • 自動上料、組裝磁芯、包膠帶、切膠帶和
    退料,生產效率高成本低。
  • 黏膠帶位置可微調,張力及圈數可調整。
  • 功能實用, 穩定, 省人工, 效率高, 操作簡單。
  • 選擇配置: 自動測試, 合格品與不良品自動分開。
  • Suitable for vertical and horizontal
    transformer automatic EE core insertion and
    taping applications.
  • Auto Coil & EE core feeding, loading, EE core
    insertion, core taping.
  • Sensor can detect the track when loading coil.
  • Suitable for tape's inner hole between 34mm and 77mm.
  • Taping tension force and number of turns can be adjusted etc.
  • Featuring in functional, stable. high productivity, labor savings and simple operations.
  • Option device & function: Automatic testing - automatic test taped transformers, automatic sort and unload NG & Good product.
機  型 Model WCE-1025TP
工作速度 Cycle Time 1800~2200pcs/Hour
電  源 Electric Source AC220V 50/60Hz
機體尺寸 Unit Dimension 850(L) x 700(W) x 1200(H) mm
機體重量 Unit Weight 150 kg

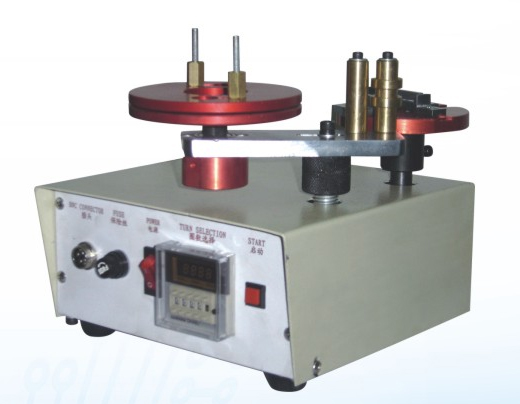

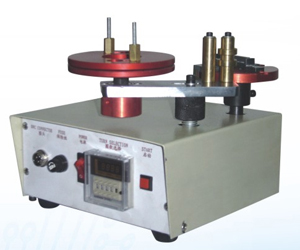

WCE-200

Core Taping Machine

半自動包膠帶機(治具旋轉式)

  • 以變壓器旋轉方式包膠布,任何材質膠帶皆可。
  • 使用公模,不需換模,大小可任意調整。
  • 可調整張力大小。圈數可調整。
  • 可選擇治具旋轉式。
  • suitable for any adhesive tape material.
  • Use of holding set, ensures to meet mostly
    shapes or size of components.
  • Adjustable of tension force. Settable for number of taping turns.
  • Optional choice of holder set rotating taping type.
機  型 Model WCE-200
電  源 Electric Source AC200v 50/60Hz
機體尺寸 Unit Dimension 200(L) x 200(W) x 140(H) mm
機體重量 Unit Weight 10 kg

WCE-1804

Automatic Taping Machine-PLC control

自動包膠帶機(PLC)

  • 關鍵零件全部採用日本進口, 可靠性強,
    耐用度高, 大大増長機械使用壽命。
  • 採用觸摸屏設定, 簡單方便。
  • 採用日本精密氣缸控制膠帶張力, 確保產品質量。
  • 轉軸可先由設計角度。
  • 獨特的設計便於更換膠帶。
  • 手指式夾持膠帶, 可根據膠帶寬度更找手指。
  • 可具備自動上下料功能。
  • 採用伺服馬達控制, 精准度高, 完全可以滿足細微產品包膠帶要求。
  • 結構簡單, 合理, 故障少, 保養方便。
  • Critical & essential parts are adopted with Japan made components. It ensures machine reliability and durability, greatly increasing the life of machine.
  • Control touch panel, simple and easy for input and setting.
  • Equipped with Japan precision cylinders for controlling taping tension that delivers ptoduct taping quality.
  • Free setting of spindle angle.
  • Adopted with Servo Motor in synchronized control.
  • Pulley-type replacement of adhesive tapes.
  • Manual loading, auto tape, cut and unload.
  • Tooling can be changed easily for different models.
  • Optional device: Automatic loading system.
機  型 Model WCE-1804
主軸數 No. of Spindle 4
主軸轉速 Spindle speed 20,000rpm
主軸間距 Spindle pitch 140mm
主軸功率 Spindle power 400W
最大膠帶寬度 Max. tape width 45mm
最大骨架外徑 Max. bobbin dimension 55mm
控制方式 Control mode PLC
氣壓 Air pressure 0.4~0.55 mpa
功率 Power consumption 400W
電  源 Electric Source AC110/AC200v single phase 50/60Hz
機體尺寸 Unit Dimension 850(L) x 510(W) x 6500(H) mm
機體重量 Unit Weight 100 kg

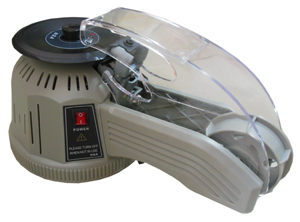

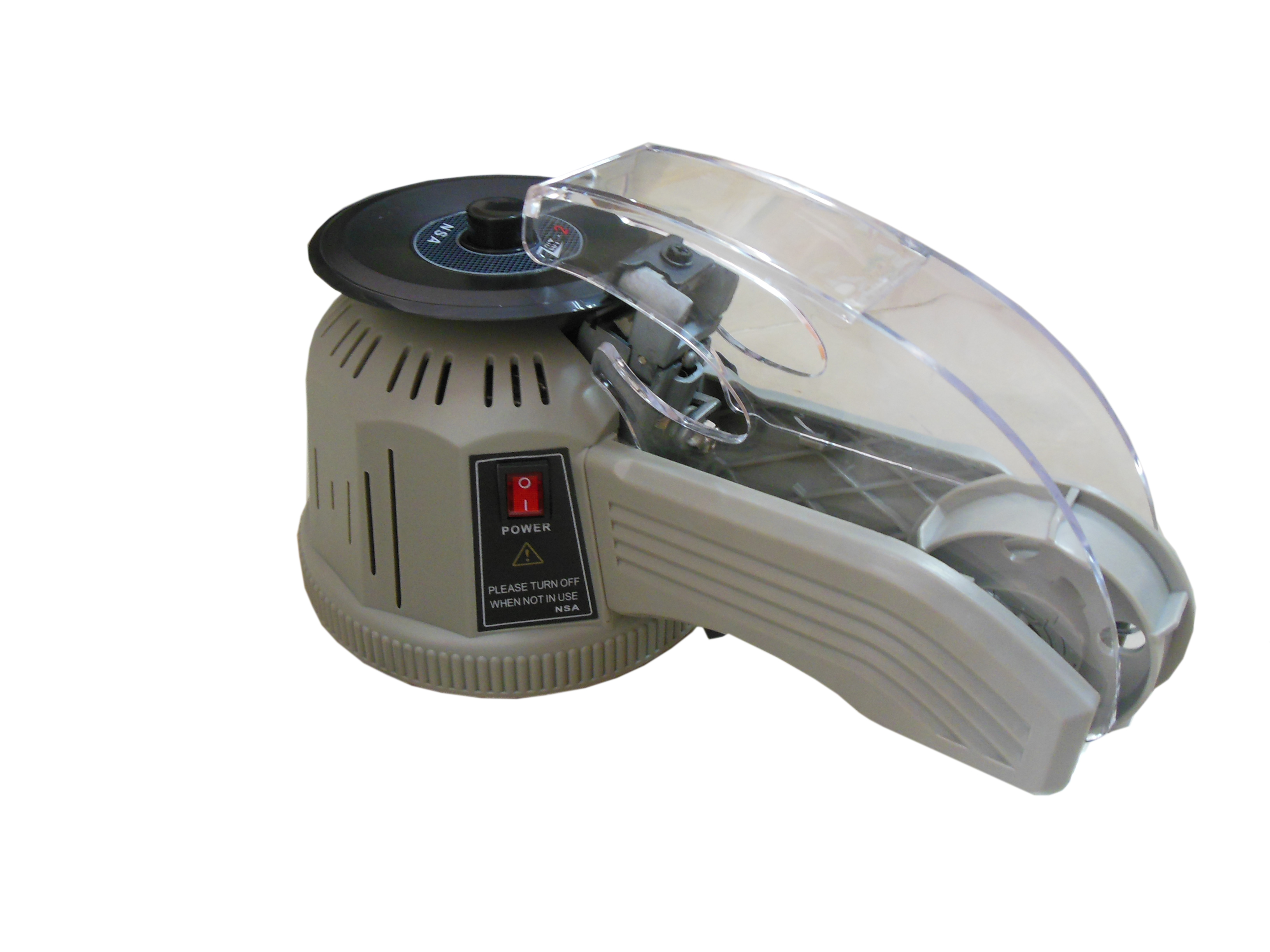

WCE-ZCUT2

Auto Tape Dispenser

自動膠帶切割機

  • 適合多人使用,高產量。
  • 操作簡易,按動按鈕,即可轉動切割膠帶。
  • 獨特的輸送系統可使膠帶饒在轉盤邊緣易於拿取。
  • 也可剪切Kapton薄膜不會捲曲,
    也可剪切非常薄的膠帶,寬度最小可到3mm。
  • 調整膠帶長度及間距可直接調節旋鈕操作。
  • 在同一台可以剪切各類膠帶。
  • Ideal for multiple operators and high volume requirements.
  • Once you hit a button, it sticks the tapes halfway around as it cuts.
  • Unique feed system places tape on carousel for easy removal.
  • Enable to cut many kinds of tape with one machine.
  • Can cut Kapton tapes without curling also can cut very slim tape to 3mm width minimally.
  • Change the length of tape and spacing by knob.
機  型 Model WCE-ZCUT2
剪切長度 Cutting Length 13~59mm
膠帶寬度 Tape Width 3~25mm
膠芯尺寸(內) Core Size Core Dia. 25mm, 32mm, 78mm
膠芯尺寸(外) Roll Size Outside Dia. Up tp 130mm
電  源 Electric Source AC200V 50/60Hz 160W
機體尺寸 Unit Dimension 130(L) x 165(W) x 170(H) mm
機體重量 Unit Weight 2.85 kg

Specifications and design are subject to change without notice for improvements.
