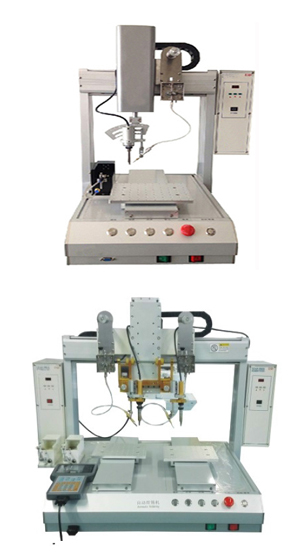

焊錫機系列 / Soldering Machine Series

WCE-T8R1/ T8R2

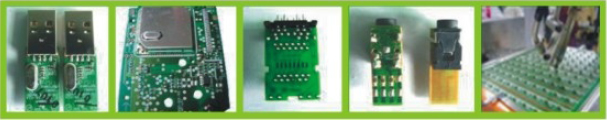

Automatic Spot Welding Machine

自動焊錫機

  • 簡單編程方式,直接輸入焊點坐標,可示教再現焊點位置坐標,
    簡單操作編程器可引導運動未端到達焊點位置。
  • 全部採用精密步進馬達及先進運動控制算法,有效提升運動
    定位精度及重復精度。
  • 靈活多樣的焊錫方式,且支持點焊和拖焊,全部工藝參數由
    用戶自行設置,適應各種高難度作業和微焊錫工藝。
  • 可設置99個焊錫程式,焊錫可調角度。
  • 自動送錫裝置(有破錫功能)及溫控器。
  • 發熱芯/烙鐵咀組件具備上下移動緩衝功能。
  • 配備專用烙鐵咀清洗裝置。
  • 配備缺鍚報警。
  • 雙工位放料,取料交替工作,更高效率。
  • XYZ-axis drive and using advanced motion control
    algorithm can effectively improve the positioning accuracy
    and repeatability movement ends, The machine is fully
    controlled by computer, handheld teach-pad directly
    through digital inputs or reproduction of spot position
    coordinates Teach..
  • Large power heating controller, Precision thermocouple
    located at the front of the soldering iron. Ensure return
    temperature in stable continuous solder.
  • Sleeve design tip and facilitate quick & easy replacement.
  • Specializing in the production automation Iron Head
    models Style diversification, can quickly solve difficult soldering process.
  • Repeatedly send tin system, can make Joints the result is more rapid and perfect.
  • 99 set program memory and freely adjustable spot welding angle.
  • "No tin' buzz alram.
機  型 Model WCE-T8R1 WCE-T8R2
工作行程 Working range 260(X)*300(Y)*100(Z)mm >720(X)*300(Y)*100(Z)mm
軸動速度 Max. Speed 0-500mm/S
運動精度 Precision +/-0.02mm
控制系統 Operating system WINCO Hand held Control + Touch Key editor
溫度控制 Temperature Control 0°C - 450°C
溫控精度 Temp Control precision +/- 2°C
錫線直徑 Tin wire diameter 0.4/0.5/0.6/0.8/1.0/1.2mm
最大負載 Max. Work load weight 10kg
程式存儲 Memory Capacity Up to 99 sets of program file
焊頭數量 Soldering tip/ head One or Two
控制系統 Drive system Micro stepping motor or belt
錫線位置 Tin wire position Adjustable
機台尺寸 Machine dimension 520(X)*580(Y)*750(Z)mm 720(X)*580(Y)*770(Z)mm
機台重量 Machine weight 50kg 60kg

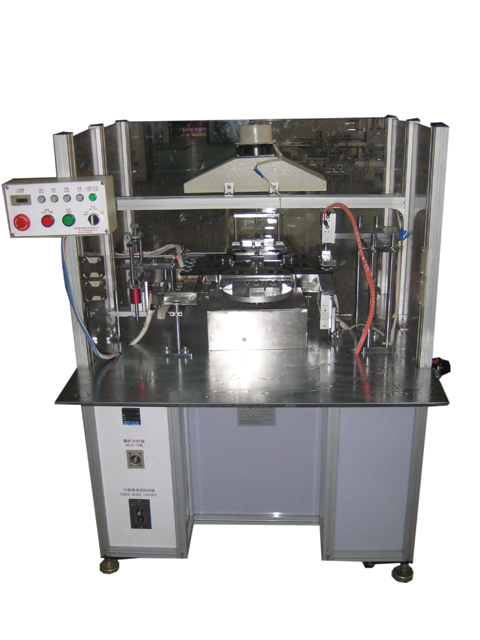

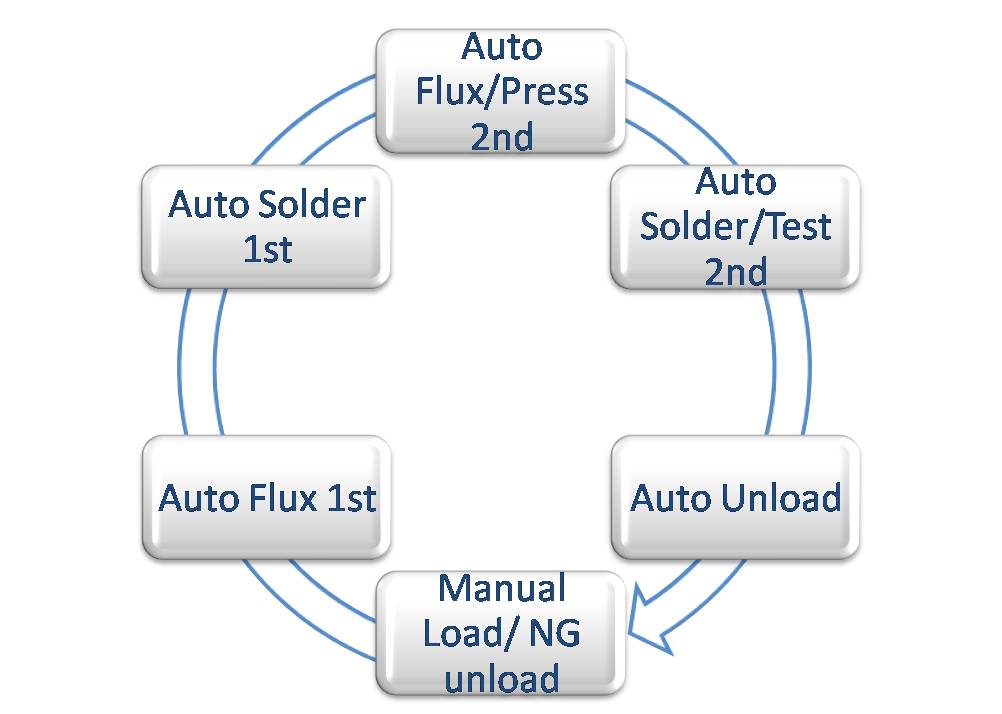

WCE-06

Six Stations Auto Dip Soldering machine

六站式自動焊錫機

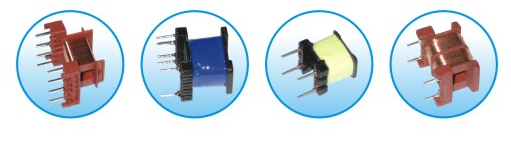

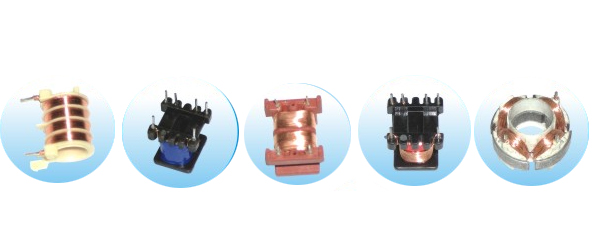

  • 適合任何立式或卧式變壓器線圈焊錫。
  • 自動撥錫渣,焊錫高度可調整。
  • 可預設開機時間,每日或每周生產排程。
  • 加熱管為抽取式,更換方便容易。
  • 可做二次焊錫,可設定焊錫時間(錫杯上升及焊錫方式)。
  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • DC風扇線圈和FBT低壓線圈,步進馬達線圈可增加
    測試及壓平功能。
  • 繼電器可增加彎腳及彎回90°功能。
  • Applicable for Vertical or Horizontal Coil or Relay component soldering
    work.
  • Auto dross clean, adjustable for soldering height.
  • Programmable setting for daily or week production schedule.
  • Heater pipe is a single unit and can be easy exchange & maintenance.
  • Two times solder per cycle, timer setting for dipping (Solder cup raise up)
  • Adopted with titanium solder pot, sustains high temperature, max.600°C.
  • Addable testing or pressing function for DC fan coil or FBT low V coil.
  • For relay, pin bending and 90° bend back can be added.
機  型 Model WCE-06
工作速度 Cycle Time 1 pcs/1.5 sec
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2600W
內錫爐尺寸 Inner Tank 155(L) x 110(W) x 65(H) mm
機體尺寸 Unit Dimension 1200(L) x 120(W) x 1400(H) mm
機體重量 Unit Weight 100 kg
另購配備 Optional Device 自動加錫機構Auto tin feeder

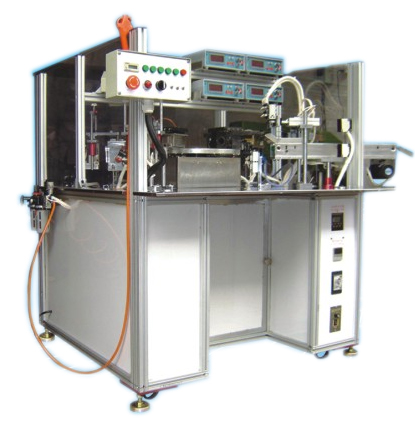

WCE-04E

Four Stations Auto Dip Soldering machine

四站式自動焊錫機


  • 適合任何立式或卧式變壓器線圈焊錫。
  • 自動撥錫渣,焊錫高度可調整。
  • 加熱管為抽取式,更換方便容易。
  • 可做二次焊錫,可設定焊錫時間(錫杯上升及焊錫方式)。
  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • Applicable for Vertical or Horizontal Coil or Relay
    component soldering work
  • Auto dross clean, adjustable for soldering height.
  • Heater pipe is a single unit and can be easy exchange
    & maintenance.
  • Two times solder per cycle, timer setting for dipping
    (Solder cup raise up).
  • Adopted with titanium solder pot, sustains high
    temperature, max.600°C.
機  型 Model WCE-04E
工作速度 Cycle Time 1pcs/1.5sec
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 1600W
內錫爐尺寸 Inner Tank 155(L) x 110(W) x 65(H) mm
機體尺寸 Unit Dimension 1100(L) x 110(W) x 1200(H) mm
機體重量 Unit Weight 70 kg

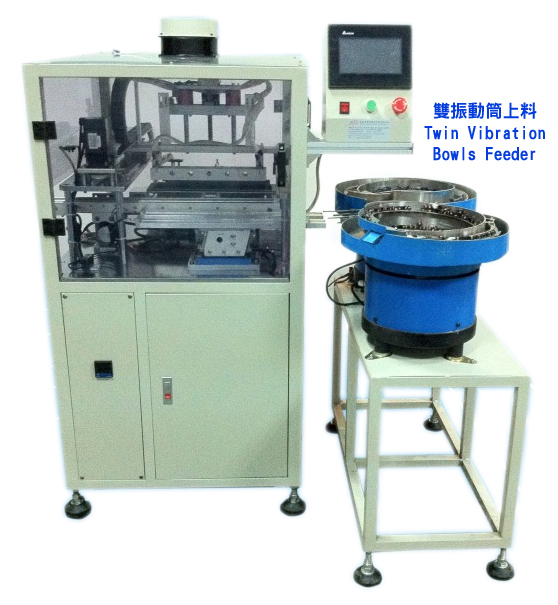

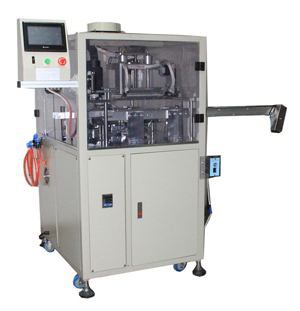

WCE-03VB

Fully Auto Dip Soldering Machine
(Twin Vibration Bowls)

變壓器全自動焊錫機(雙振動筒)

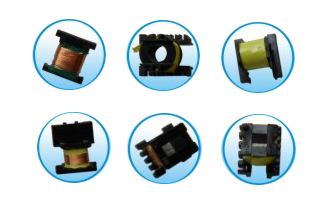

  • 適合任何立式或卧式變壓器線圈焊錫。

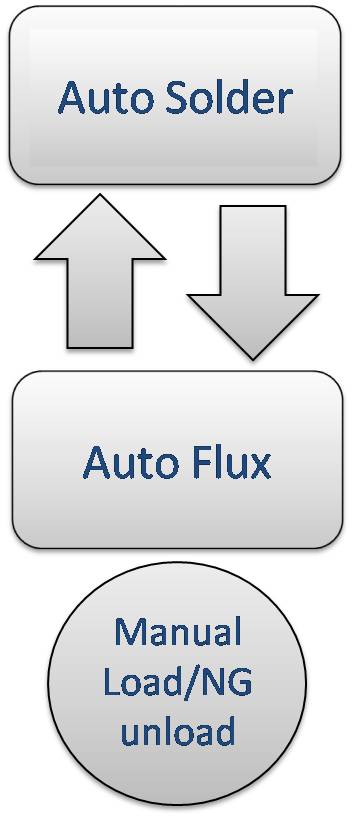

  • 全自動上料,自動松香,自動焊錫,自動退料。
  • 雙振動筒上料,可選擇同時焊兩種不同產品。
  • 可選擇轉角度或不轉角度焊錫。
  • 可根據客戶不同的產品設計焊錫要求。
  • 設備功能實用,穩定,省人工,效率高,操作簡單。
  • Applicable for Vertical or Horizontal Coil or Relay component soldering work.
  • Fully automatic feeding material, flux dipping, dip soldering and unloading.
  • Twin vibration bowls that allow two different kinds of products be simultaneously loaded and soldered.
  • Programmable angle rotation for dip soldering
  • Allowed custom design according to customer's special soldering request and specification.
  • Functional, stable, high efficiency, labor cost saving and simply operation.
機  型 Model WCE-03VB
操作方式 Operation 人機介面 Control Touch Panel Interface
控制方式 Control 伺服馬達 & PLC Servo Motor & PLC
氣  壓 Air Pressure 4~6 kg/cm²
電  源 Electric Source AC220V 50/60Hz
機體尺寸 Unit Dimension 920(L) x 700(W) x 1300(H) mm
振動筒架台尺寸 Vibration bowl table size 900(L) x 400(W) x 1100(H) mm

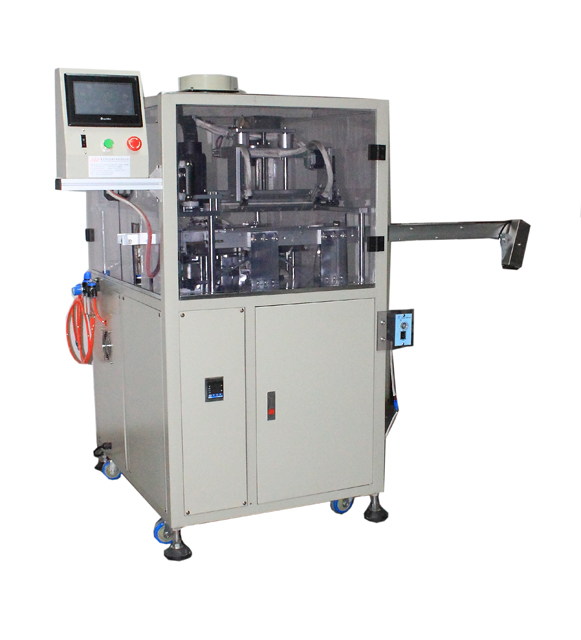

WCE-03CB

Fully Auto Dip Soldering Machine
(Conveyor belt type)

變壓器全自動焊錫機(含輸送帶)

  • 適合任何立式或卧式變壓器線圈焊錫。
  • 全輸送帶自動上料,自動松香,自動焊錫,自動退料。
  • 不同產品,只需要調輸送帶擋板可通用。
  • 可選擇轉角度或不轉角度焊錫。
  • 可根據客戶不同的產品設計焊錫要求。
  • 設備功能實用,穩定,省人工,效率高,操作簡單。
  • Applicable for Vertical or Horizontal Coil or Relay component soldering work.
  • Fully automatic conveyor feeding material, auto flux dipping, auto dip soldering and auto unloading.
  • Different type of product may only need to manually adjust the bezel of conveyor for compatible feeding , no extra fixture or mold required.
  • Programmable angle rotation for dip soldering.
  • Custom design according to customer's special soldering request and specification.
  • Functional, stable, high efficiency, labor cost saving and simply operation.
機  型 Model WCE-03CB
操作方式 Operation 人機介面 Control Touch Panel Interface
控制方式 Control 伺服馬達 & PLC Servo Motor & PLC
氣  壓 Air Pressure 4~6 kg/cm²
電  源 Electric Source AC220V 50/60Hz ; 3500W
機體尺寸 Unit Dimension 920(L) x 700(W) x 1300(H) mm
振動筒架台尺寸 Unit Weight 900(L) x 400(W) x 1100(H) mm

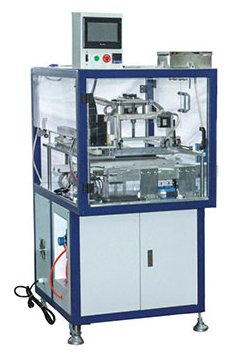

WCE-03M

Auto Dip Soldering Machine
(Manual Load type)

變壓器全自動焊錫機

  • 適合任何立式或卧式變壓器線圈焊錫。

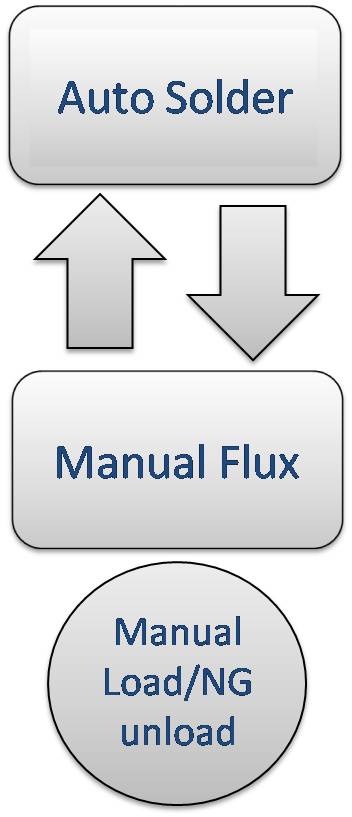

  • 人工上料,自動松香,自動焊錫,自動退料。
  • 適合不同產品。
  • 可選擇轉角度或不轉角度焊錫。
  • 可根據客戶不同的產品設計焊錫要求。
  • 設備功能實用,穩定,省人工,效率高,操作簡單。
  • Applicable for Vertical or Horizontal Coil or Relay component soldering work.
  • Manual load, auto flux dipping, auto dip soldering and auto unloading.
  • Programmable angle rotation for dip soldering.
  • Custom design according to customer's special soldering request and specification.
  • Functional, stable, high efficiency, labor cost saving and simply operation.
機  型 Model WCE-03CB
操作方式 Operation 人機介面 Control Touch Panel Interface
控制方式 Control 伺服馬達 & PLC Servo Motor & PLC
氣  壓 Air Pressure 4~6 kg/cm²
電  源 Electric Source AC220V 50/60Hz ; 3500W
機體尺寸 Unit Dimension 920(L) x 700(W) x 1300(H) mm
振動筒架台尺寸 Unit Weight 900(L) x 400(W) x 1100(H) mm

WCE-05LVB

Fully Auto Dip Soldering Machine
(Twin Vibration Bowls)

CHOKE COIL全自動焊錫機(雙振動筒)

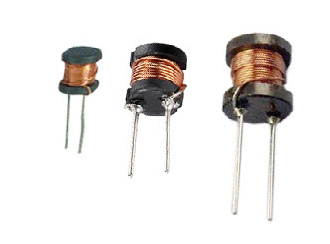

  • 適合CHOKE coil線圈焊錫。
  • 全自動上料,自動松香,自動焊錫,自動退料。
  • 雙振動筒上料,可選擇同時焊兩種不同產品。
  • 可選擇轉角度或不轉角度焊錫。
  • 可根據客戶不同的產品設計焊錫要求。
  • 設備功能實用,穩定,省人工,效率高,操作簡單。
  • Applicable for Choke coil soldering work.
  • Fully automatic feeding material, flux dipping, dip soldering and unloading.
  • Twin vibration bowls that allow two different kinds of products be simultaneously loaded and soldered.
  • Programmable angle rotation for dip soldering
  • Allowed custom design according to customer's special soldering request and specification.
  • Functional, stable, high efficiency, labor cost saving and simply operation.
機  型 Model WCE-03VB
操作方式 Operation 人機介面 Control Touch Panel Interface
控制方式 Control 伺服馬達 & PLC Servo Motor & PLC
氣  壓 Air Pressure 4~6 kg/cm²
電  源 Electric Source AC220V 50/60Hz
機體尺寸 Unit Dimension 920(L) x 700(W) x 1300(H) mm
振動筒架台尺寸 Vibration bowl table size 900(L) x 400(W) x 1100(H) mm

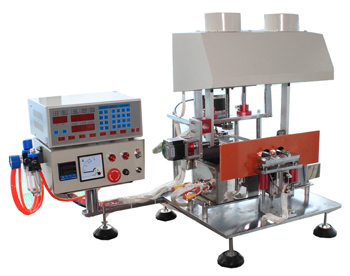

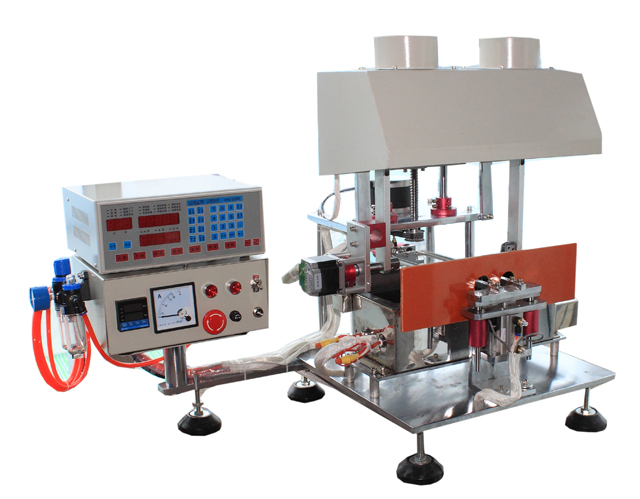

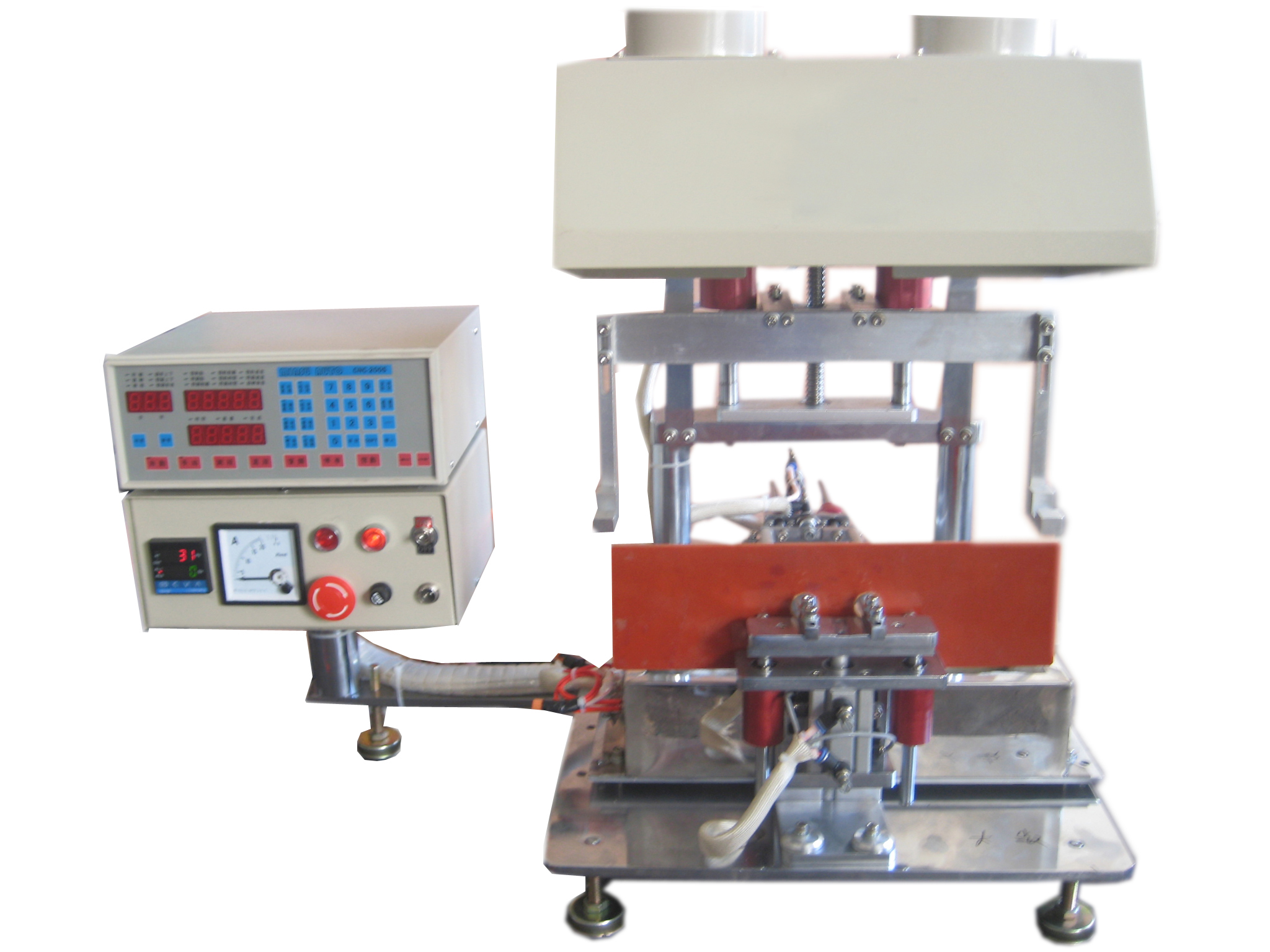

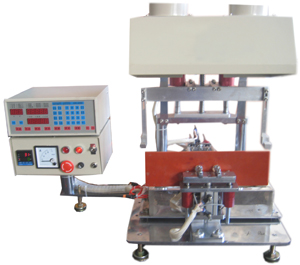

WCE-02R

Auto Dip Soldering Machine

自動翻轉焊錫機(貼片式CHOCK及SMD專用機)

  • 可調控360度翻轉焊錫。
  • 採用電腦控制系統,可取99組記憶,
    每一組最多可設定10個步序記憶配合步進馬達。
  • 一個可設定三段功能,每一段可設定
    (a)角度任意設定 (b)下降高度任意設定
    (c)預熱時間可設定。
  • 臥式機種,傾斜角度焊,再傾斜另一角度焊另一
    邊;再回平行,洗腳焊錫,橫移。
  • 鈦合金內爐,液面不易氧化,電熱管為抽取式,更換容易。
  • Selectable for an angle soldering process.
  • Adopted with CNC controller system, it can store up to 99 sets of memory, each memory can be set up to 10 parameters memory harmony with stepping motor.
  • One program can position 3 steps function, each step can have a setting for:-
    (a) Angle setting (b) Dropping height setting (c) Pre-heat time setting.
  • For horizontal coil, angle one side position for solder, then angle other side for solder, then parallel, finally dragging soldering.
  • Equipped with titanium solder pot, temperature control, reduce tin oxidation.
    And heater pipe is a single unit and can be easily exchange for maintenance.
機  型 Model WCE-02R
工作速度 Cycle Time 10~20pcs/12 sec
行  程 Traverse Max. 76mm (步進馬達Stepping Motor)
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2000W
內錫爐尺寸 Inner Tank 300(L) x 100(W) x 60(H) mm
機體尺寸 Unit Dimension 550(L) x 600(W) x 530H) mm
機體重量 Unit Weight 60 kg
另購配備 Optional Device 探針、錫杯、增加橫移機構
Nozzle, Solder cup or Dragging mechanism.

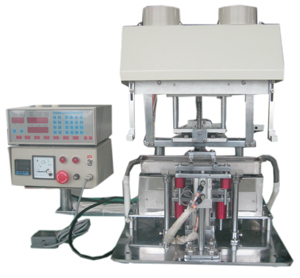

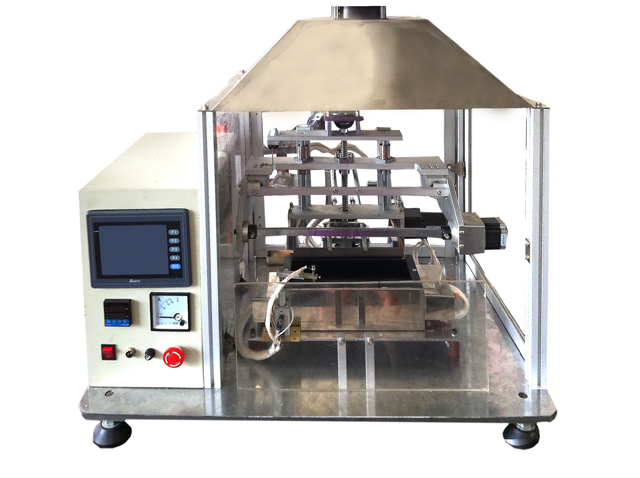

WCE-02R_PLC

PLC Auto Dip Soldering Machine

PLC自動翻轉焊錫機(貼片式CHOCK及SMD專用機)

  • 可調控360度翻轉焊錫。
  • 採用PLC系統,可取99組記憶,
    每一組最多可設定10個步序記憶配合步進馬達。
  • 一個可設定三段功能,每一段可設定:-
    (a)角度任意設定 (b)下降高度任意設定
    (c)預熱時間可設定。
  • 臥式機種,傾斜角度焊,再傾斜另一角度焊另
    一邊; 再回平行,洗腳焊錫,橫移。
  • 鈦合金內爐,液面不易氧化,電熱管為抽取式,
    更換容易。
  • Selectable for an angle soldering process.
  • Adopted with PLC controller system, it can store up to 99 sets of memory, each memory can be set up to 10 parameters memory harmony with stepping motor.
  • One program can position 3 steps function, each step can have a setting for:-
    (a) Angle setting (b) Dropping height setting (c) Pre-heat time setting
  • For horizontal coil, angle one side position for solder, then angle other side for solder, then parallel, finally dragging soldering.
  • Equipped with titanium solder pot, temperature control, reduce tin oxidation.
    And heater pipe is a single unit and can be easily exchange for maintenance.
機  型 Model WCE-02R_PLC
工作速度 Cycle Time 10~20pcs/12sec
操作方式 Operation 人機介面 Control Touch Panel Interface
操作方式 Control PLC
行  程 Traverse Max. 76mm (步進馬達Stepping Motor)
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2000W
內錫爐尺寸 Inner Tank 300(L) x 100(W) x 60(H) mm
機體尺寸 Unit Dimension 550(L) x 600(W) x 530(H) mm
機體重量 Unit Weight 60 kg
另購配備 Optional Device 探針、錫杯、增加橫移機構
Nozzle, Solder cup or Dragging mechanism.

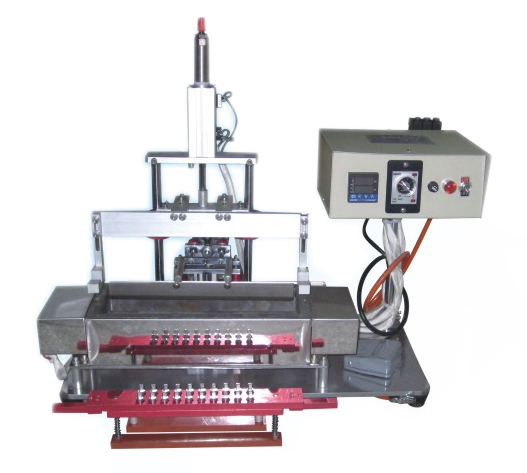

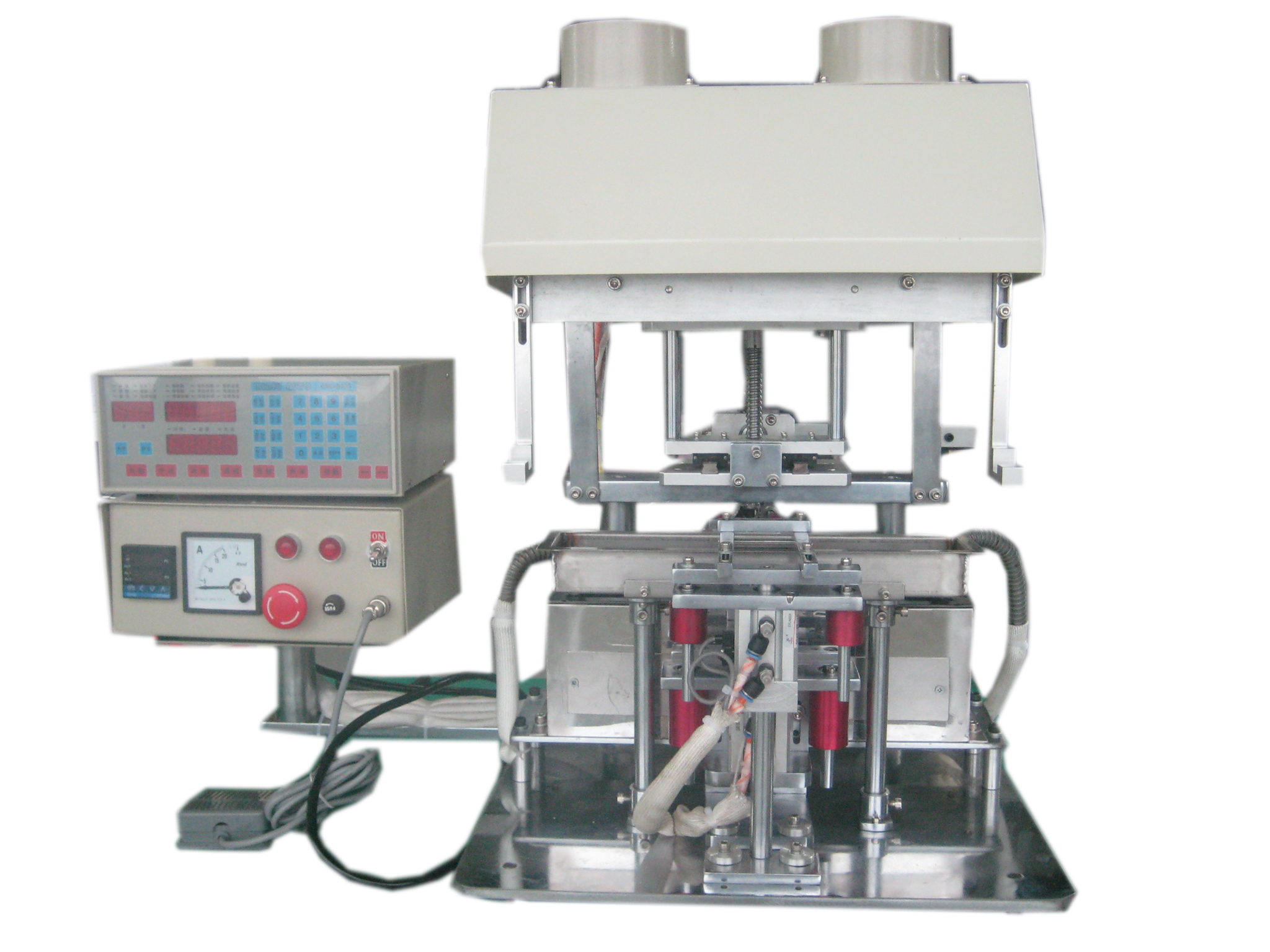

WCE-02LA

CNC In-Line Auto Dip Soldering Machine

CNC整排式自動焊錫機

  • 適合任何立式或卧式變壓器線圈焊錫。
  • 採用電腦控制系統,可取1000組步序記憶配合
    步進馬達。
  • 自動撥錫渣,焊錫高度可調整。
  • 加熱管為抽取式,更換方便容易。
  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • Applicable for Vertical or Horizontal Coil or Relay
    component soldering work.
  • Adopted with CNC controller system, it can store up to 1000 parameters memory harmony with stepping motor.
  • Auto dross clean, adjustable for soldering height.
  • Heater pipe is a single unit and can be easy exchange & maintenance.
  • Adopted with titanium solder pot, sustains high temperature, max.600°C.
機  型 Model WCE-02LA
工作速度 Cycle Time 10~20pcs/8sec
行  程 Traverse Max. 76mm (步進馬達Stepping Motor)
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2000W
內錫爐尺寸 Inner Tank 300(L) x 100(W) x 60(H) mm
機體尺寸 Unit Dimension 550(L) x 600(W) x 535(H) mm
機體重量 Unit Weight 60 kg
另購配備 Optional Device 橫移機構Dragging mechanism

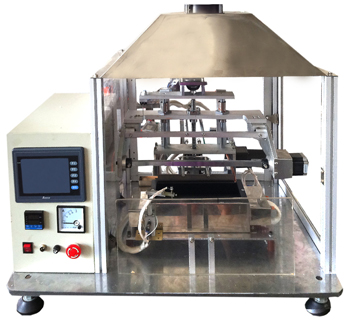

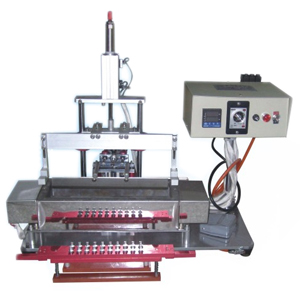

WCE-02AF

Auto Flux and Dip Soldering Machine

自動松香焊錫機


  • 適合任何立式或卧式變壓器線圈焊錫。
  • 採用電腦控制系統,可取1000組步序記憶配合
    步進馬達。
  • 自動撥錫渣,焊錫高度可調整。
  • 加熱管為抽取式,更換方便容易。
  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • Applicable for Vertical or Horizontal Coil or Relay
    component soldering work.
  • Adopted with CNC controller system, it can store up
    to 1000 parameters memory harmony with stepping motor.
  • Auto dross clean, adjustable for soldering height.
  • Heater pipe is a single unit and can be easy exchange & maintenance.
  • Adopted with titanium solder pot, sustains high temperature, max.600°C.
機  型 Model WCE-02AF
工作速度 Cycle Time 10~20pcs/8sec
行  程 Traverse Max. 76mm (步進馬達Stepping Motor)
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2000W
內錫爐尺寸 Inner Tank 300(L) x 100(W) x 60(H) mm
機體尺寸 Unit Dimension 550(L) x 600(W) x 535(H) mm
機體重量 Unit Weight 60 kg
另購配備 Optional Device 橫移機構Dragging mechanism

WCE-02K

Auto Dip Soldering Machine
(Fixture down Soldering)

治具下降式自動松香焊錫機


  • 適合任何立式或卧式變壓器線圈焊錫。
  • 自動撥錫渣,焊錫高度可調整。
  • 加熱管為抽取式,更換方便容易。
  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • 自動恒溫,液面不易氧化。
  • Applicable for Vertical or Horizontal Coil
    or Relay component soldering work.
  • Auto dross clean, adjustable for soldering height.
  • Heater pipe is a single unit and can be easily exchange & maintenance.
  • Adopted with titanium solder pot, sustains high
    temperature, max.600°C.
  • Temperature control, reduce tin oxidation
機  型 Model WCE-02K
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 2000W
內錫爐尺寸 Inner Tank 300(L) x 100(W) x 30(H) mm
機體尺寸 Unit Dimension 580(L) x 350(W) x 530(H) mm
機體重量 Unit Weight 20 kg

WCE-01WP

Surge Wave soldering pot
(Lead-Free Titanium Crucible)

波𡶶式無鉛鈦合金錫爐

  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • 自動恒溫,液面不易氧化。
  • 加熱管為抽取式,更換方便容易。
  • 可根據客戶要求,製造特定內爐尺寸。
  • Fitted with various soldering task, transfromer, PCB,
    connector, wire hardness etc.
  • Solder level can be controlled and adjusted for
    required contact surface.
  • Heating pipe is removable, easy to interchange.
  • Interchange outlet nozzle, provides with different
    size, shape, model of working pieces.
  • Lead free titanium solder pot, sustains high
    temperature, max.600°C.
  • Temperature control, reduce tin oxidation.
機  型 Model WCE-01WP
溫度範圍 Temp. Range Up to 500degC (lead free)
溫度精度 Temp. precise +/- 1degC
內爐尺寸 Solder bath dimension L194xW120xH92mm
加熱元件 Heating elements Heater pipe
溫度顯示 Temp. display Digit
外型尺寸 Unit dimension L480xW200xH356mm
重  量 Unit weight 15KG

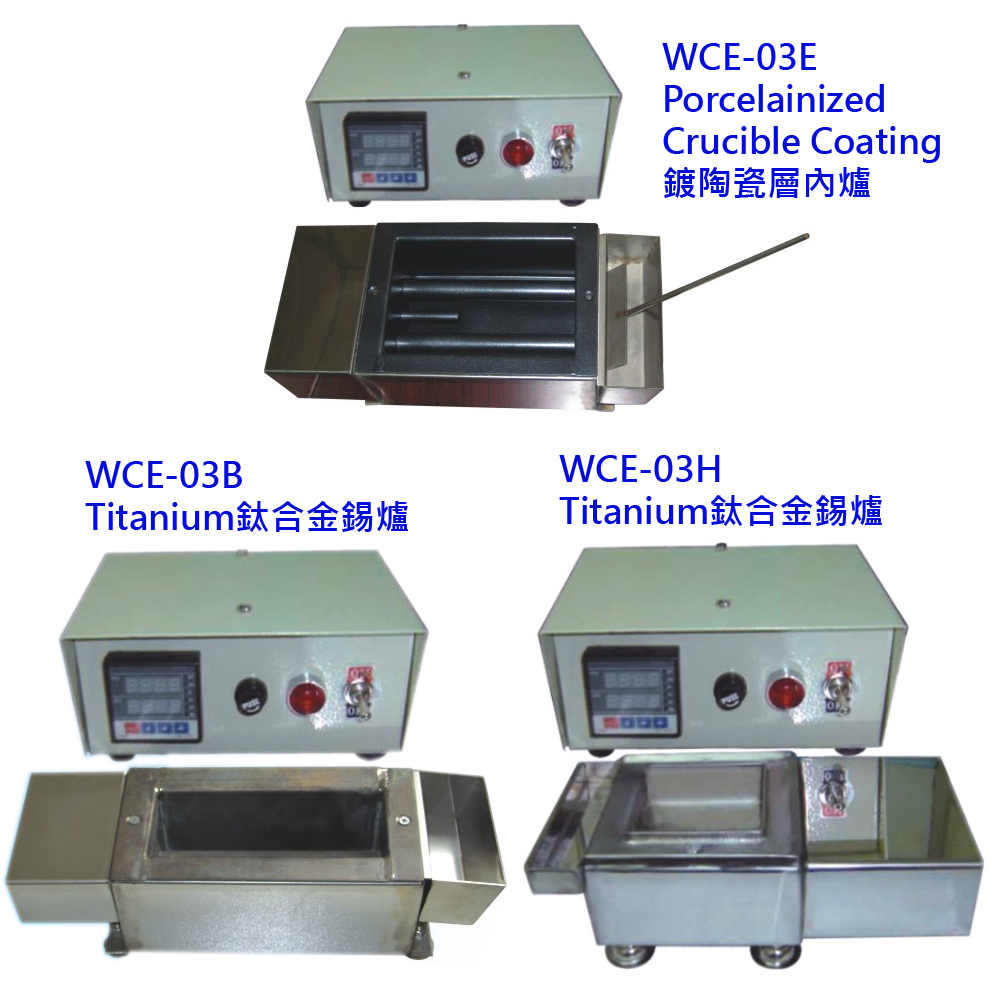

WCE-03A/B/C/E/H/K

Lead-Free Titanium Dip Solder pot
(Porcelainized Crucible Coating)

無鉛鈦合金錫爐(鍍陶瓷層內爐)

  • 配置鈦合金錫爐,耐高溫,最高可達600°C。
  • 自動恒溫,液面不易氧化。
  • 加熱管為抽取式,更換方便容易。
  • 可根據客戶要求,製造特定內爐尺寸。
  • Lead free titanium solder pot, sustains high
    temperature, max.600°C.
  • Temperature control, reduce tin oxidation.
  • Heater pipe is a single unit and can be
    easily exchange & maintenance.
  • Available for standard types or
    specified inner bath dimension.
機  型 Model Inner Tank Dimension
A  爐 WCE-03A 155(L) x 95(W) x 20(H) mm
B  爐 WCE-03B 155(L) x 55(W) x 40(H) mm
C  爐 WCE-03C 135(L) x 40(W) x 12(H) mm
E  爐 WCE-03E 155(L) x 110(W) x 35(H) mm
H  爐 WCE-03H 60(L) x 60(W) x 30(H) mm
K  爐 WCE-03K 300(L) x 100(W) x 35(H) mm
另購配備 Optional Device 鍍陶瓷層內爐Porcelainized Crucible Coating

Specifications and design are subject to change without notice for improvements.
