CP WIRE + SOLDER WIRE SERIES

Electro Tin Coated Nickel Copper Covered Steel Wire

電鍍錫鎳銅包鋼線

Features
  • It is made by electro-plating a certain thickness of Nickel (Ni) and Copper (Cu) of good conductivity and corrosion resistance over on the high strength steel. Nickel under plated enhances the wear characteristics. Coating thickness of copper and tin composition can be managed and controlled as per customer's specification and application standards. For information of advantage of Nickel under-plating, please see the "strength of nickel plating".

  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Transformer, Coil Former Bobbin, Relay bobbin pin etc.

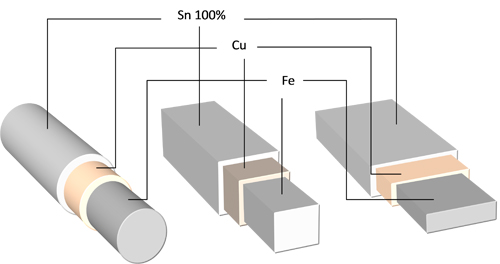

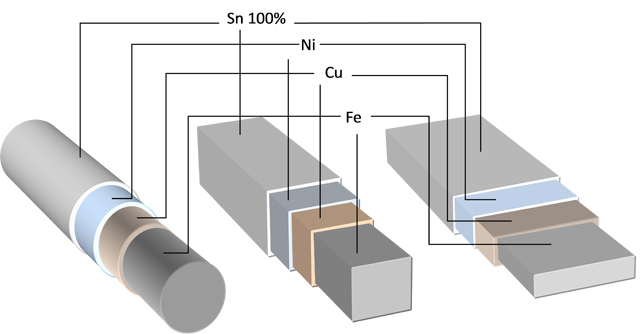

Cross-sectional View
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.02
Tensile Strength
(kg/mm²)
35 ~ 100
(by specified)
40 ~ 75
(by specified)
50 ~ 75
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 3 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

Electro Tin Coated Copper Covered Steel Wire

電鍍錫銅包鋼線

Features
  • It is made by electro-plating a certain thickness of copper (Cu) of good conductivity and corrosion resistance over on the high strength steel. Coating thickness of copper and tin composition can be managed and controlled as per customer's specification and application standards.

  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Connector, Bobbin, Transistor bobbin, Pin, Electrolytic Capacitor, Film Capacitor; Fixed Resistor; Diode; Lamp etc.

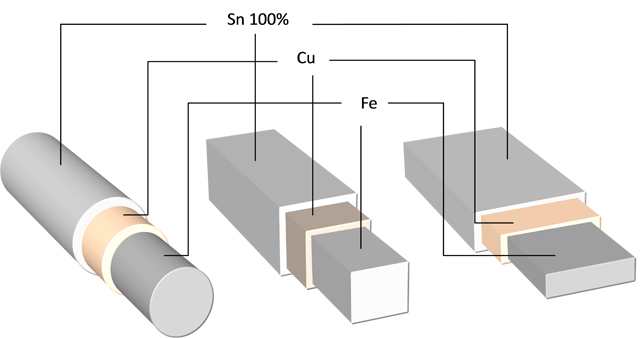

Cross-sectional View
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.02
Tensile Strength
(kg/mm²)
35 ~ 100
(by specified)
40 ~ 75
(by specified)
50 ~ 75
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 3 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

Electro Tin Coated Copper/Nickel Covered Phosphor
Bronze Wire

電鍍錫銅/鎳包磷青銅線

Features
  • It is made by electro-plating a certain thickness of copper (Cu) or nickel (Ni). Coating thickness of Copper or Nickel can be managed and controlled as per customer's specification and application standards. The core material of Phosphor Bronze, it is characterized by good conductivity and corrosion resistance as well as being superior in elasticity and tenacity mechanical and physical performance.
    For information of advantage of Nickel under-plating, please see the "strength of nickel plating".

  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Connector, Bobbin, Spring, Transistor bobbin, lead wire Pin, Transformer, Coil Former Bobbin, Relay bobbin pin etc.
  • Alloy Number: C5102, C5191

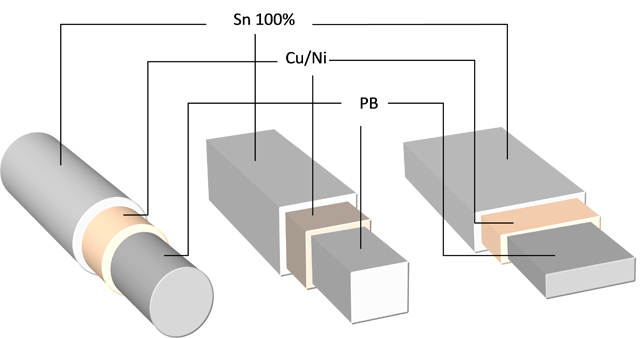

Cross-sectional View
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.02
Tensile Strength
(kg/mm²)
65 ~ 80
(by specified)
65 ~ 80
(by specified)
65 ~ 80
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 3 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

Electro Tin Coated Copper/Nickel Covered Brass Wire

電鍍錫銅/鎳包黃銅線

Features
  • It is made by electro-plating a certain thickness of copper (Cu) or nickel (Ni). Coating thickness of Copper or Nickel can be managed and controlled as per customer's specification and application standards. The core material of Brass is excellent characteristics in process ability, corrosion resistance as well as superior in hardness and tensile strength.
    For information of advantage of Nickel under-plating, please see the "strength of nickel plating".

  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Connector, Bobbin, Transistor bobbin, Pin, Transformer, Coil Former Bobbin, Relay bobbin pin etc.

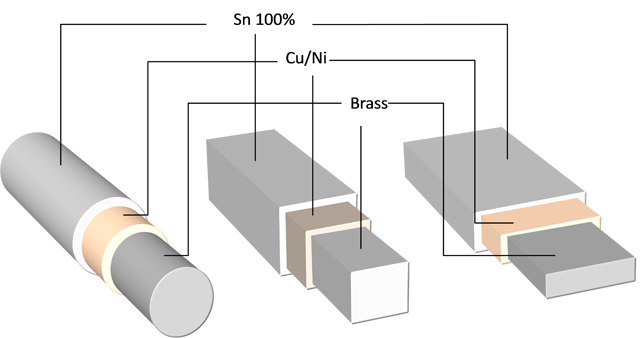

Cross-sectional View
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.02
Tensile Strength
(kg/mm²)
35 ~ 100
(by specified)
40 ~ 75
(by specified)
50 ~ 75
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 3 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

Electro Copper Covered Steel Wire
(Communication Cable Wire)

電鍍銅包鋼線

Features
  • It is made by electro-plating a certain thick of copper (Cu) of good conductivity and corrosion resistance over on the Soft Temper Steel or Hard Strength Steel. Coating thickness of copper can be managed and controlled for different conductivity as per customer's specification and application standards.

  • Coating Process: Electro Plating
  • Coating Content: Cu 15%; Cu 21%; Cu 30%; Cu 40%; Cu 70% or special request.
  • Mechanical & Electrical Properties: ASTM B-227 Hard Drawn Copper Clad Steel Wire, ASTM B-452 Copper Clad Steel Wire for Electronic Application, Certification to BS-4087.

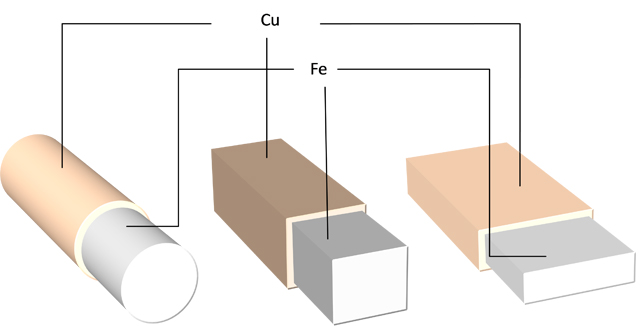

Cross-sectional View
Physical Characteristics
Diameter (mm) 0.40mm ~ 0.80mm
Tolerance (mm) +/- 0.01
Tensile Strength (kg/mm²) 25 ~ 55
Elongation (%) Min 15
IACS (%) 30%, 60% OR 70%
Standard Length (km/kg) Upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

High Purity Aluminium Wire

高純度鋁線

Features
  • Aluminum wire is commonly used for electrolytic capacitor, metal split etc.
  • Our high purity of Aluminum wire which can be adjusted from 99.70% ~ 99.995% according to customer's requirements and specifications.

  • Applications: For Electrolytic capacitors, Metalizing.

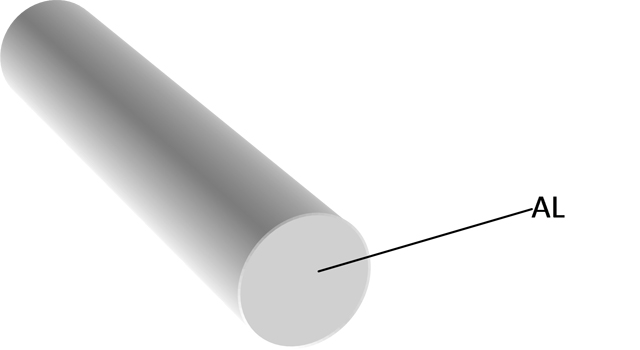

Cross-sectional View
Physical Characteristics
Diameter (mm) 0.65 mm ~ 2.45mm
Tolerance (mm) +/- 0.01 ~ +/- 0.04
Tensile Strength (kg/mm²) 14 ~ 22
Elongation (%) Min 1
Alloy 5052, 5056, 5154
Conductivity (%) 60% up
Standard Length (km/kg) Upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

Tin Plated Copper Wire

鍍錫銅線

Features
  • It is made by electro-plating a certain thick of tin (Sn) over on the Soft Temper Copper or Hard Copper. Coating thickness of tin can be managed and controlled for different solder ability as per customer's specification and application standards.

  • Coating Process: Electro Plating
  • Coating Content: 6~12um or special request.
  • Applications: For Ceramic capacitors, Conductors, Jumper.

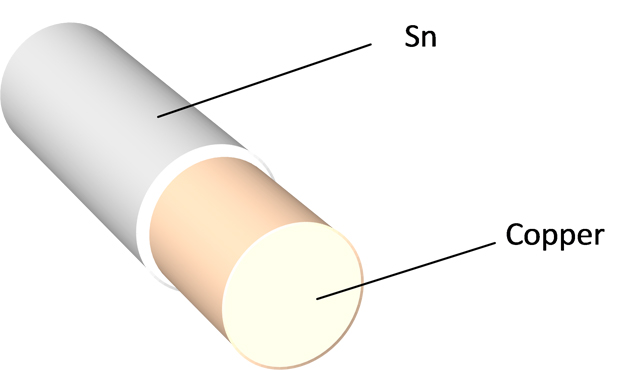

Cross-sectional View
Physical Characteristics
Diameter (mm) 0.40 mm ~ 1.20mm
Tolerance (mm) +/- 0.015
Tensile Strength (kg/mm²) 25 ~ 50
Elongation (%) Min 3
Bending Property (times) Min 3
Standard Length (km/kg) Upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

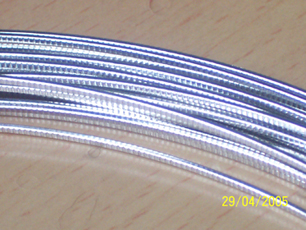

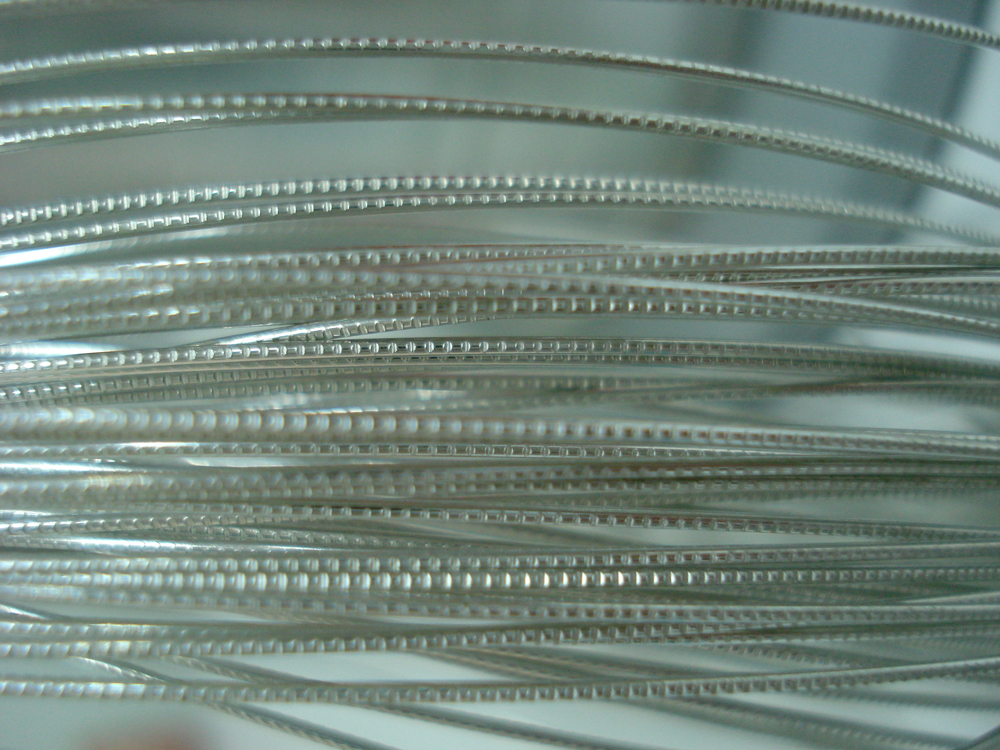

Serrated Special Wire

特殊壓紋線

Features
  • Serrated wire which is best suit for anchoring magnet wire-wrap connecting on terminals and increase pin retention force without any crimping process needed.

  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Connector, Bobbin, Transistor bobbin, Pin, Transformer, Coil Former Bobbin, Relay bobbin pin etc.
Cross-sectional View
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.01 ~ 0.03
Tensile Strength
(kg/mm²)
35 ~ 100
(by specified)
40 ~ 75
(by specified)
50 ~ 75
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 2 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

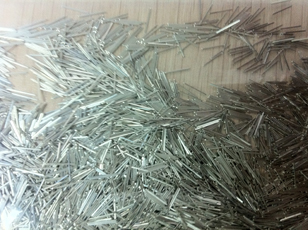

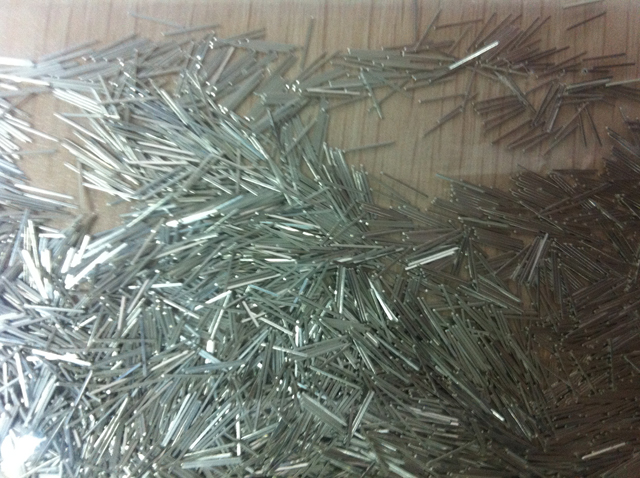

Pre-cut Pins

線材剪裁加工

Features
  • pre-cut pin into pieces as per specified length.
  • Coating Process: Electro Plating
  • Coating Content: Tin 100% (Pb free)
  • Applications: For Connector, Bobbin, Transistor bobbin, Pin, Transformer, Coil Former Bobbin, Relay bobbin pin etc.
Cross-sectional View
Normal flat cut pin
Engrave surface cut (one/ two sides)
Chamfering end cut (one/ two ends)
Physical Characteristics
Type of Size ROUND SQUARE FLAT
Diameter (mm) 0.30 ~ 1.60 0.30*0.30 ~ 1.20*1.20 0.30*0.40 ~ 0.70*1.00
Hardness (H) 1/2H or 3/4H
Tolerance (mm) +/- 0.01 ~ 0.03
Tensile Strength
(kg/mm²)
35 ~ 100
(by specified)
40 ~ 75
(by specified)
50 ~ 75
(by specified)
Elongation (%) 0 ~ 5%
Bending Time (times) Min 2 times
Coating Content (µ) 6µm +/- 1µm
Nickel Plating (µ) 1µm - 2µm
Standard Length (km/kg) Standard length provided upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.

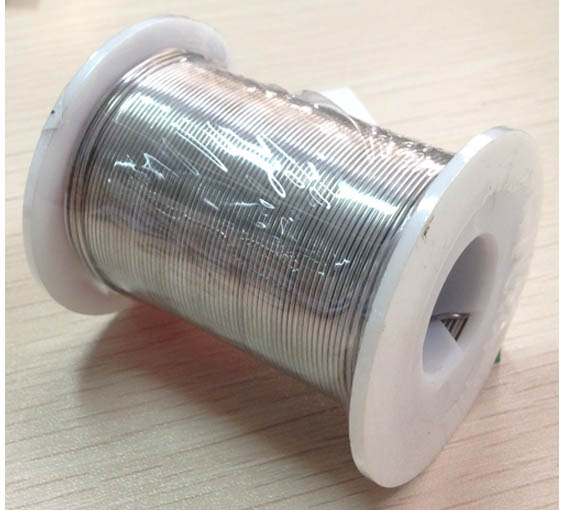

Solder Wire

錫線

Features
  • Smooth & shinning surface,Low lead impurity, Good fluidity.
  • Low generation of solder dross.
  • High mechanical strength.
  • Low aggressive to solder pot material.
  • Lead free type and leaded type.

  • Applications: ---
Cross-sectional View
Physical Characteristics
Diameter (mm) 0.50, 0.60, 0.70, 0.80, 1.0, 1.2, 1.5, 1.6, 2.0mm
Tolerance (mm) +/- 0.05mm
Pb/Sn(%) 50/50; 60/40; 63/37; 65/35
Setting of soldering gun temperature(°C) 300 - 350
Flux content(%) 1.8 - 2.2
Halide content (%) 0.45 - 0.55
Standard Length (km/kg) Upon request

Fe/Brass/Cu/PB/Brass base material and above composition can be customized according to customer's specifications.
