Machine and Equipment
插針機系列 / Insertion Machine Series

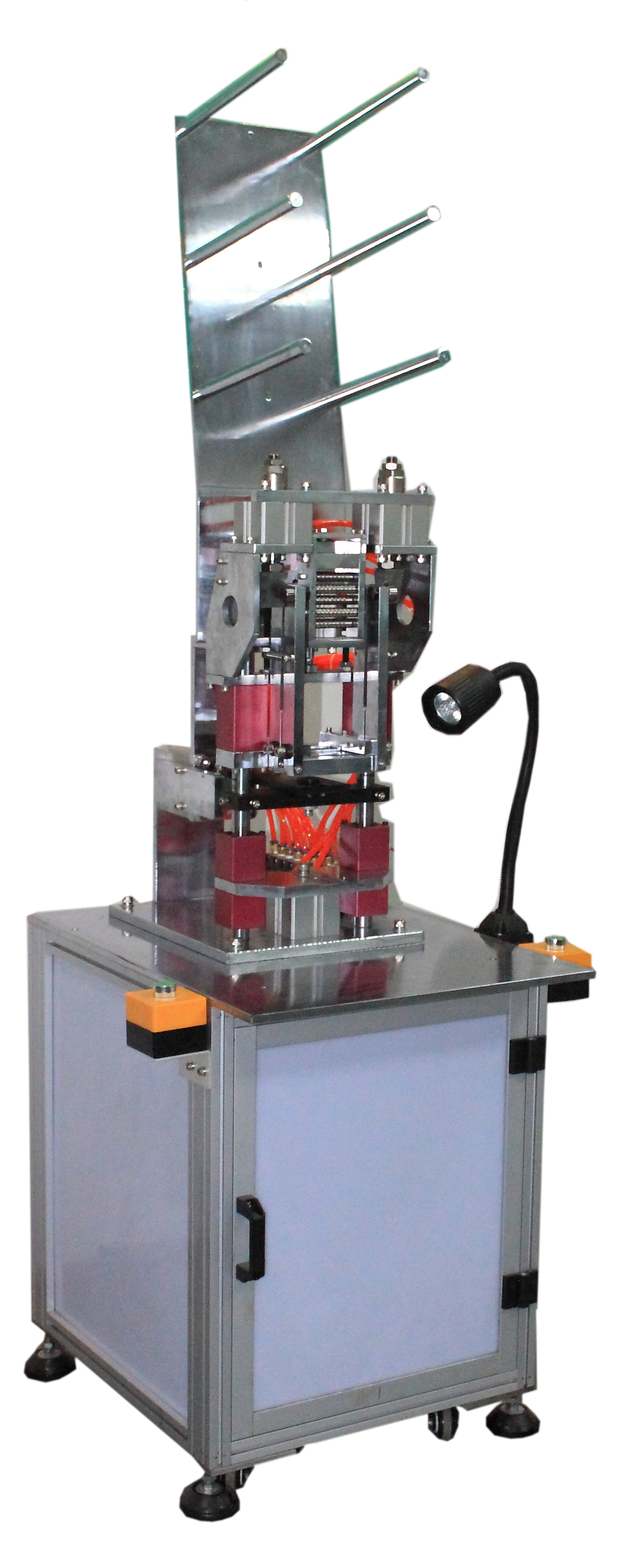

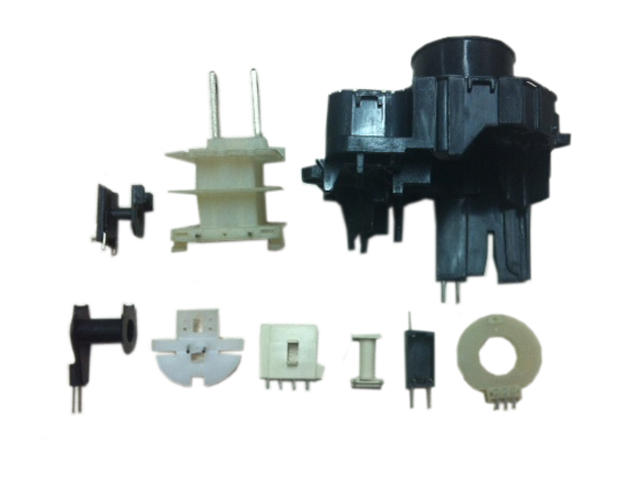

WCE-10
Pin Inserting Machine
端子插針機
- 機台設計專為少量但多樣式生產,機動性高。
- 模具更換簡易、快速,不須專業人員。
- 圓針、方針和扁針皆適用。
- 刻溝位置及強度可任意調整,增加拉力。
- PIN插入可作直插或L型90°彎角。
- 最多可一次單排插10支端子。
- Dedicate for small amount but many type items production.
- Easy for exchanging mold.
- Applicable for Round, Square and Flat pin wire.
- Adjustable for swage's position, hardness & enhance retention force.
- Straight or "L" shape pin bending insertion can be made.
- Maximum 10 pins insertion per rail.
機 型 | Model | WCE-10 |
線徑範圍 | Pin Diameter | 0.4 ~1.2mm |
工作速度 | Cycle Time | 1 pcs/1.5 sec ; 2 pcs/2.8 sec |
氣 壓 | Air Pressure | 6~7 kg/cm² |
電 源 | Electric Source | AC 220V 50/60Hz |
機體尺寸 | Unit Dimension | 600(L) x 660(W) x 1850(H) mm |
機體重量 | Unit Weight | 75 kg |

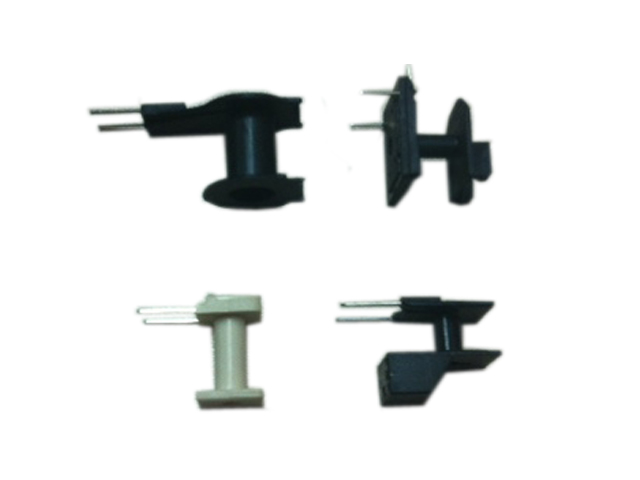

- 增加振動筒裝置,可自動上料。
- 機台設計專為少量但多樣式生產,機動性高。
- 模具更換簡易、快速,不須專業人員。
- 圓針、方針和扁針皆適用。
- 刻溝位置及強度可任意調整,增加拉力。
- PIN插入可作直插,或L型90°彎角。
- 最多可一次單排插10支端子。
- Equipped with Vibrating bowl feeder, auto feed and load bobbin.
- Dedicate for small amount but many type items production.
- Easy for exchanging mold.
- Applicable for Round, Square and Flat pin wire.
- Adjustable for swage's position, hardness & enhance retention force.
- Straight or "L" shape pin bending insertion can be made.
- Maximum 10 pins insertion per rail.

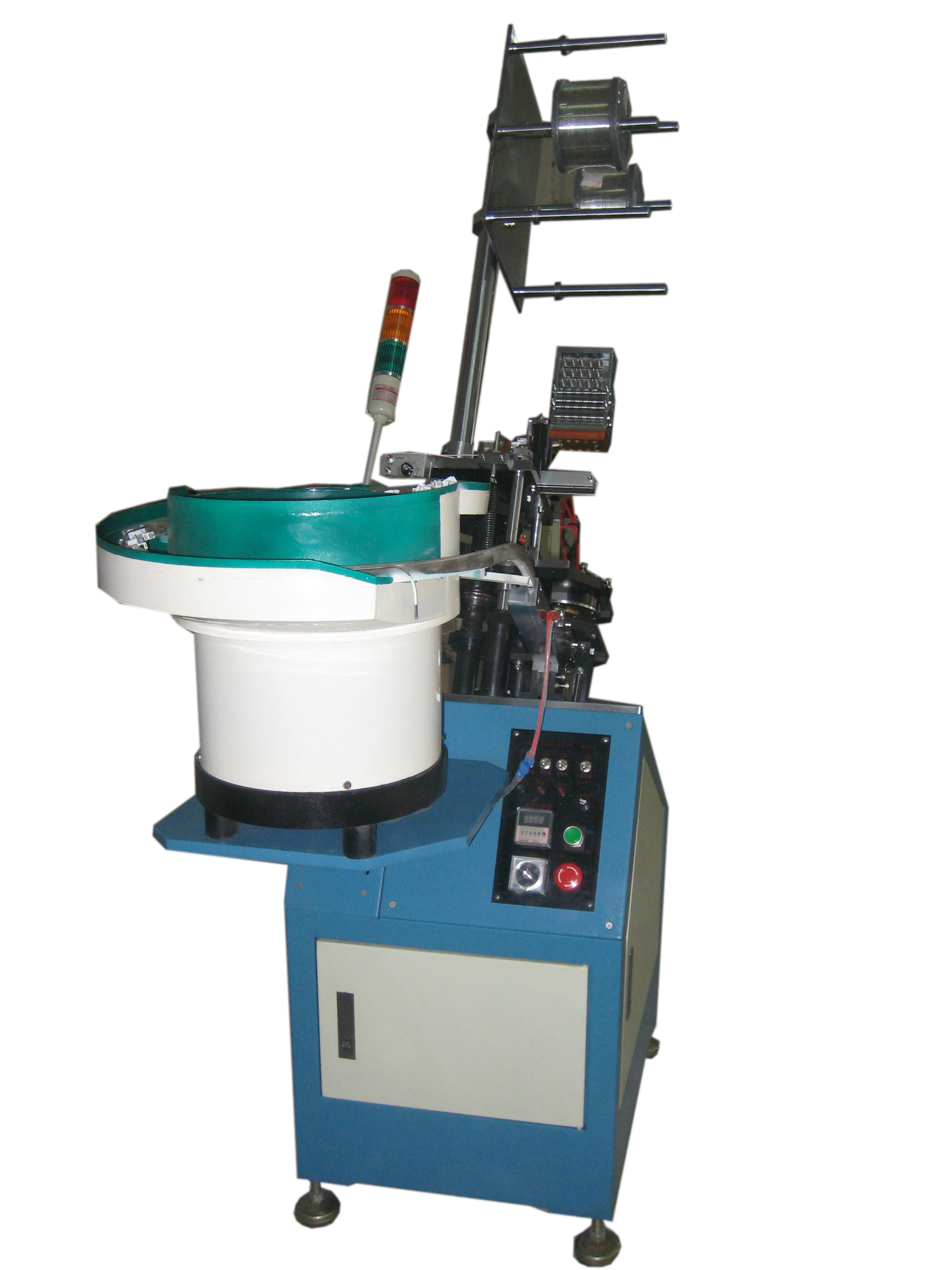

機 型 | Model | WCE-10A |
線徑範圍 | Pin Diameter | 0.4 ~1.2mm |
工作速度 | Cycle Time | 1 pcs/3 sec |
氣 壓 | Air Pressure | 6~7 kg/cm² |
電 源 | Electric Source | AC 220V 50/60Hz |
機體尺寸 | Unit Dimension | 660(L) x 1000(W) x 1900(H) mm |
機體重量 | Unit Weight | 150 kg |

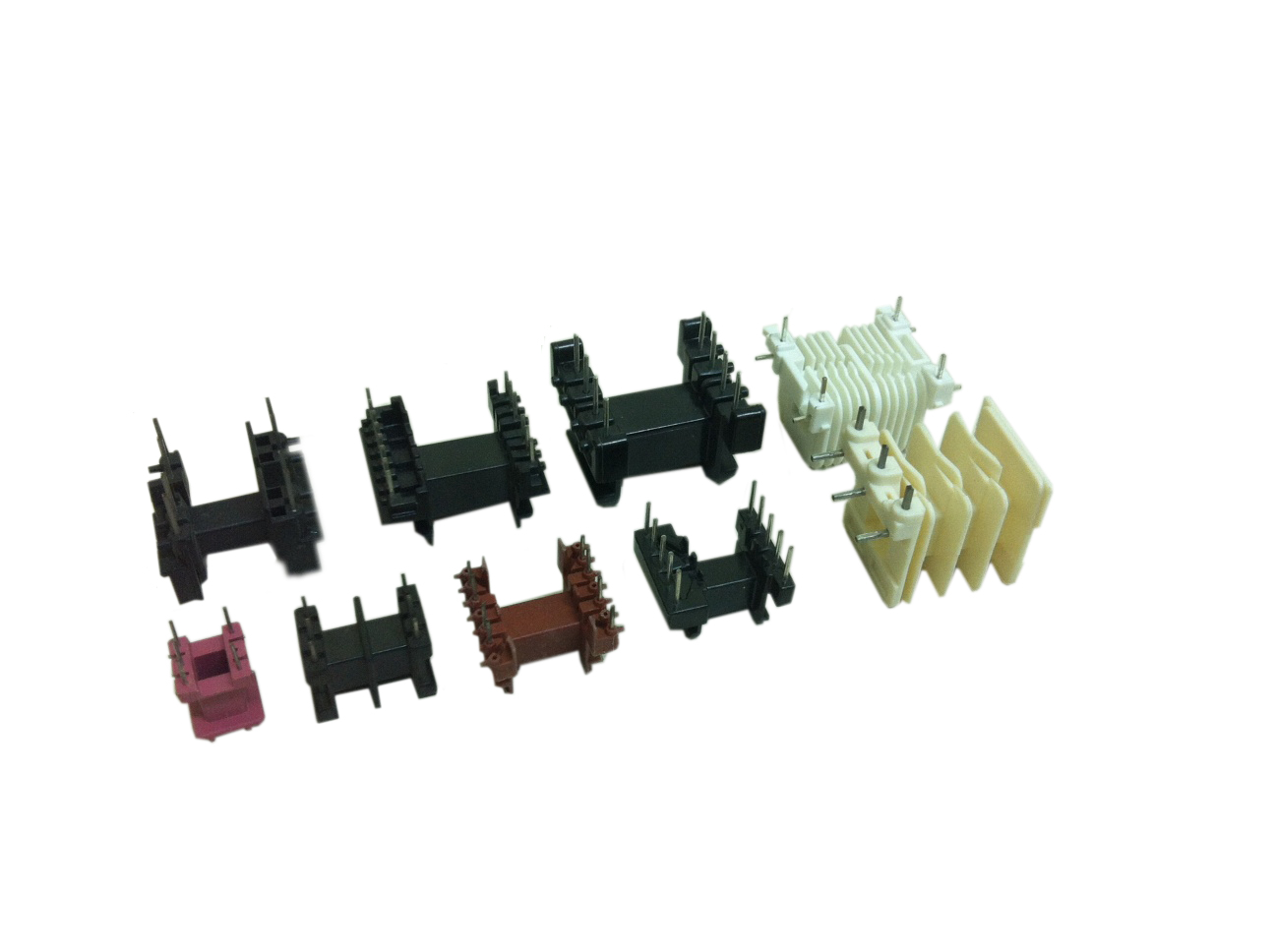

- 增加振動筒裝置,自動上料。
- 機台設計專為插端子片。
- 根據客戶產品及端子片而設計。
- 設備功能實用, 穩定, 省人工, 效率高, 操作簡單
- Equipped with Vibrating bowl feeder, auto
feed and load bobbin & tab terminal. - Dedicate for inert tab production.
- Made per customer's bobbin and tab terminal.
- Functional, stable & high productivity, labor savings, simple operations.

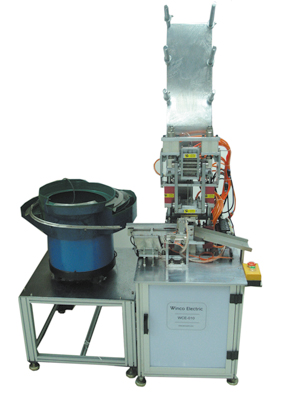

機 型 | Model | WCE-10R |
端子片範圍 | Tab Terminal | Per request |
工作速度 | Cycle Time | 1 pc/2 sec |
氣 壓 | Air Pressure | 6~7 kg/cm² |
電 源 | Electric Source | AC 220V 50/60Hz |
機體尺寸 | Unit Dimension | 1300(L) x 1000(W) x 800(H) mm |
機體重量 | Unit Weight | 150 kg |

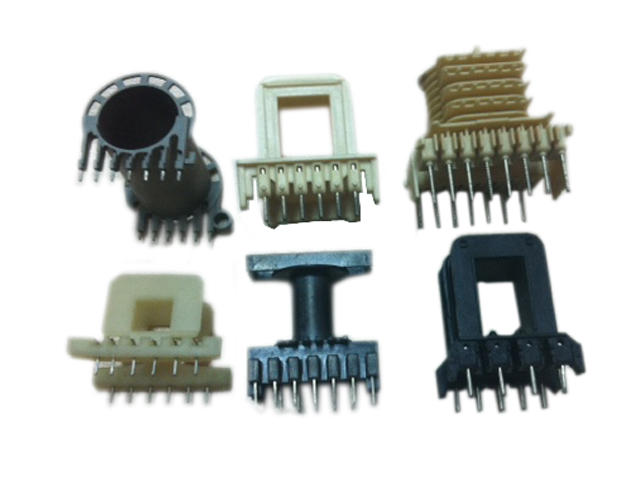

- 可依使用者需求及設計之生產線連線配合使用。
- 機台採用插卡式模具,只須更換產品的卡式模具,快速方便。
- 機台有刻溝裝置,增強拉力。另外亦配置了
自動斷線、無料及自動計數偵測功能。 - PIN插入可作直插,或L型90°彎角。
- 圓針、方針和扁針皆適用。
- 最多可一次雙排插20支端子。
- Design as per user's requests or connect with their production line.
- Adopted "Mold Card" system, it is easy for exchange different type of mold by removing & inserting particular "mold card".
- Equipped with crimping device that enhances retention force. Also adopted "Auto detector for pin bent", "detector for no wire" & "counter" for easy work monitoring.
- Straight or "L" shape pin bending insertion can be made.
- Applicable for Round, Square and Flat pin wire.
- Two rails pin insertion, maximum 20 pins insertion per cycle.

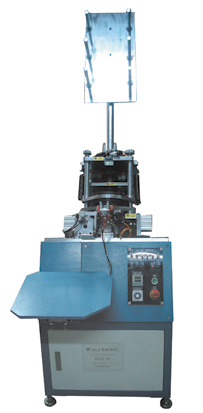

機 型 | Model | WCE-28 |
線徑範圍 | Pin Diameter | 0.4 ~0.8mm |
工作速度 | Cycle Time | 46~60 pcs/min |
電 源 | Electric Source | AC 380V 50/60Hz 3 phase |
機體尺寸 | Unit Dimension | 650(L) x 450(W) x 1500(H) mm |
機體重量 | Unit Weight | 180 kg |
另購配備 | Optional Device | 振動盤 Vibrating bowl feeder |

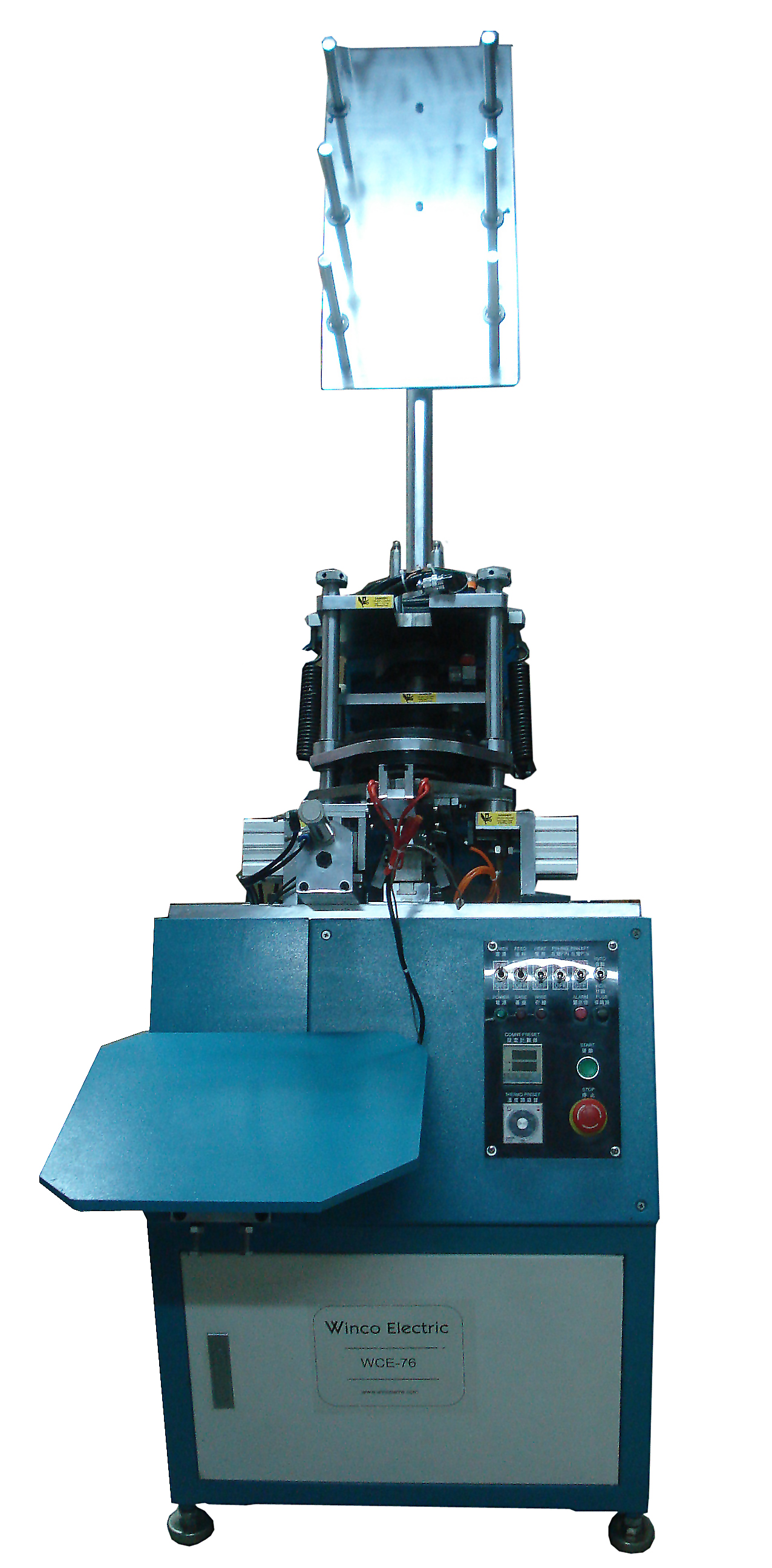

WCE-76
Auto Pin Inserting Machine
自動端子插針機
- 可依使用者需求及設計之生產線連線配合使用。
- 機台採用插卡式模具,只須更換產品的卡式模具,快速方便。
- 機台有刻溝裝置,增強拉力。另外亦配置了自動斷線、無料
及自動計數偵測功能。 - PIN插入可作直插,或L型90°彎角。
- 圓針、方針和扁針皆適用。
- 最多可一次雙排插20支端子。
- Design as per user's requests or connect with their production line.
- Adopted "Mold Card" system, it is easy for exchange different type of mold by removing & inserting
particular "mold card". - Equipped with crimping device that enhances retentionforce. Also adopted "Auto detector for pin bent", "detector for no wire" & "counter" for easy work monitoring.
- Straight or "L" shape pin bending insertion can be made.
- Applicable for Round, Square and Flat pin wire.
- Two rails pin insertion, maximum 20 pins insertion per cycle.
機 型 | Model | WCE-76 |
線徑範圍 | Pin Diameter | 0.6 ~1.5mm |
工作速度 | Cycle Time | 25~40 pcs/min |
電 源 | Electric Source | AC380V 50/60Hz 3 phase |
機體尺寸 | Unit Dimension | 750(L) x 600(W) x 1800(H) mm |
機體重量 | Unit Weight | 240 kg |
另購配備 | Optional Device | 振動盤 Vibrating bowl feeder |
Specifications and design are subject to change without notice for improvements.
