其它相關設備系列 / Other Related Series

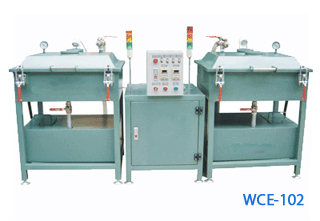

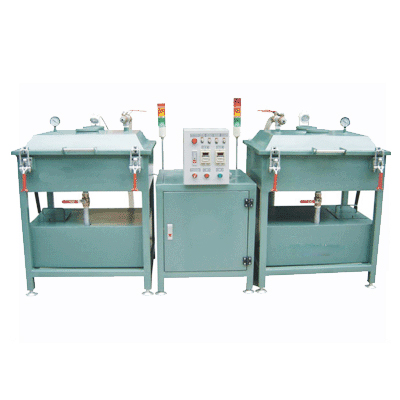

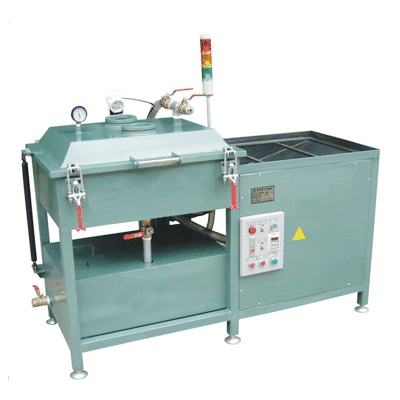

WCE-101
WCE-102

One/Double-Tank Vacuum
Impregnation Machine

單/雙槽真空含浸機

  • 是電子,電機、鑄件等工業最佳的含浸設備。
  • 本機內部經特殊加工處理,耐用安全可靠。
  • 視明窗及照明設備,檢視功能,事半功倍。
  • 雙桶交替使用,省時省電,產能效率高。
  • Best equipment for electronic, electric
    components varnishing work.
  • Special inner treatment work, durable
    and safe to use.
  • Unique see-through-window & lighting
    device for easy monitoring.
  • Double tank creates productivity, time
    & power safe as shifting to use.
機  型 Model WCE-101
電  源 Electric Source AC380V 50/60Hz 3phase; 1HP
內槽尺寸 Inner Dimension 700(L) x 530(W) x 200(H) mm
機體尺寸 Unit Dimension 1900(L) x 850(W) x 1100(H) mm
機體重量 Unit Weight 200 kg

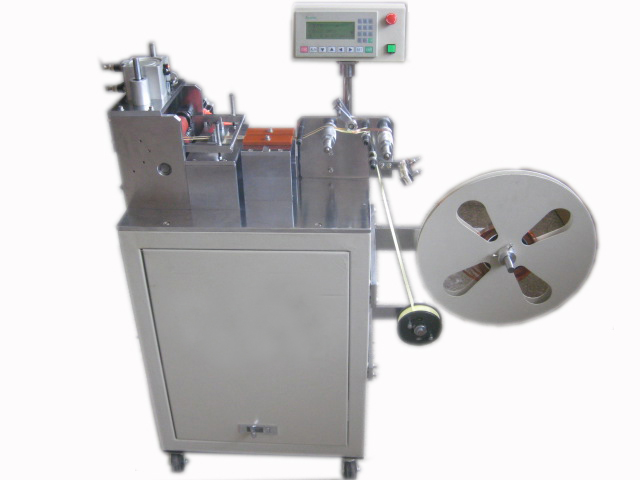

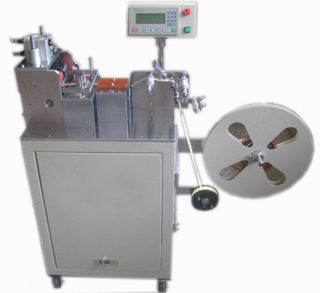

WCE-220CF

Copper Foil Taping & Cutting Machine

銅箔包膠帶切斷機

  • 適用於銅箔材料包膠布及切斷。
  • 自動送料、包膠布、切斷、退料及計數功能。
  • 切斷端口可選擇弧形或直型。
  • 銅箔寬度在8~30mm之間。
  • 銅箔厚度在0.1mm~0.8mm之間。
  • 裁切長度可自由調整。
  • 銅箔之寬度或厚度變更時,只需更
    改相關之導軌或配件。
  • The machine is dedicated for Copper
    foil taping and cutting.
  • Automatic feeding, taping, cutting,
    reject and production quantity count.
  • Suitable for Copper foil width from 8 to 30mm.
  • Thickness of Copper foil is between
    0.1mm and 0.8mm.
  • It can cut the taped copper foil as flat or
    curved ends (different blade required).
  • Cutting length can be set freely.
  • When changing Copper foil width/thickness, simply changes the roller guider and relevant parts.
機  型 Model WCE-220CF
銅箔寬度範圍 Copper Foil Width 8~30mm
銅箔厚度範圍 Copper Foil Thickness 0.1~0.8mm
切斷長度 Cutting Length 自由設定Free adjustment.
氣  壓 Air Pressure 5 kg/cm²
電  源 Electric Source AC220V 50/60Hz 150W
機體尺寸 Unit Dimension 1000(L) x 350(W) x 1050(H) mm
機體重量 Unit Weight 60 kg

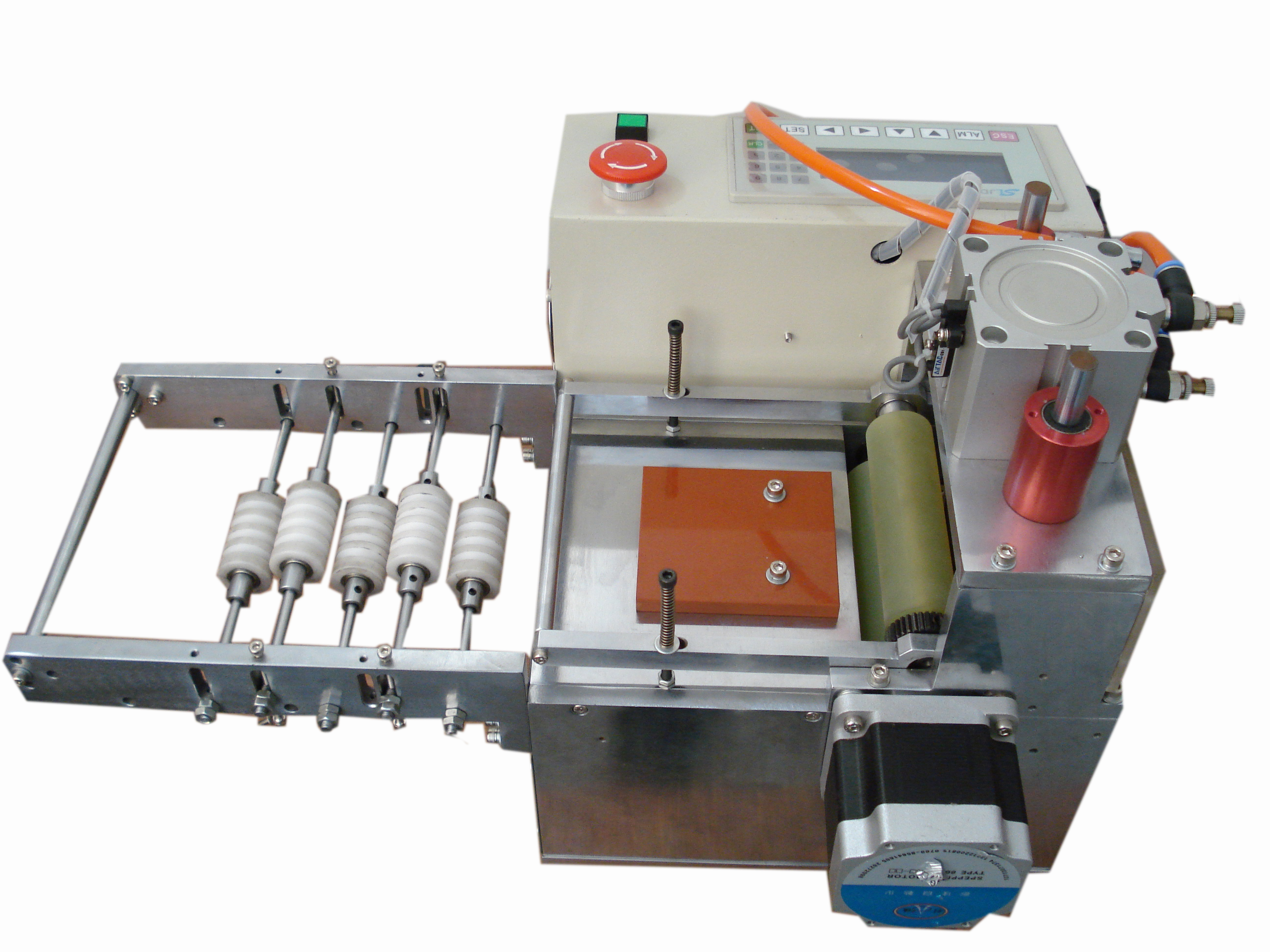

WCE-100

Micro Computer Belt Cutting Machine

微電腦切帶機

  • 機台採用微電腦控制,設定切帶長度。
    精度準確,操作簡易,損耗少。
  • 適用於熱收縮套管、排線、PVC套管、
    絕緣紙、雙面膠帶等之裁剪使用。
  • This machine is adopted micro
    computer numerical controlling
    device to set the belt cutting length
    that precision, simple of operating & low wastage rate.
  • It is suitable for heat shrinkage tube, Cable wire,
    PVC sleeve tube, Insulating paper, Twin surface
    bonding tape etc cutting use.
機  型 Model WCE-100
裁剪長度 Cutting Length 1 ~ 9999mm
裁剪寬度 Cutting Width 1 ~ 70mm
氣  壓 Air Pressure 6 kg/cm²
電  源 Electric Source AC220V 50/60Hz 100W
機體尺寸 Unit Dimension 350(L) x 380(W) x 350(H) mm
機體重量 Unit Weight 25 kg

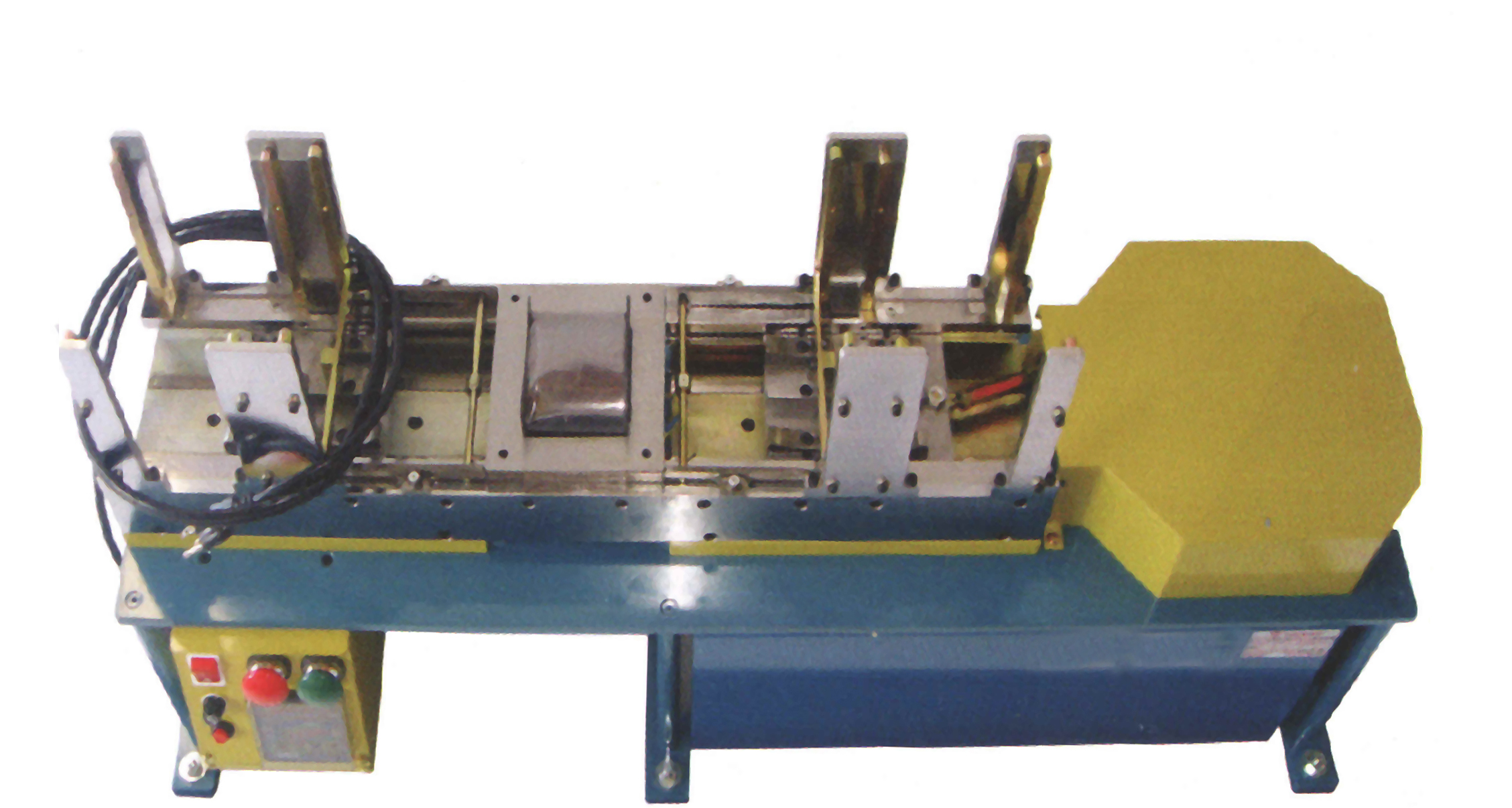

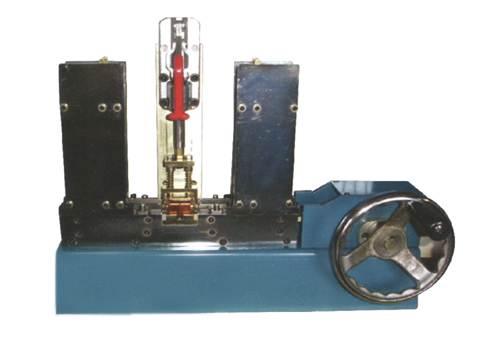

WCE-EI
WCE-UI

Core Plate Inserting Machine

鐵芯插入機

EI手搖插片
EI MANUAL TYPE
EI自動插片
EI AUTO MOTOR TYPE
UI手搖插片
UI MANUAL TYPE
  • EI片不倒拉,平順一片。
  • 增加產量/提升工作效率並減少損壞矽鋼片。
  • EI Pads do no back pulled.
  • Increase productivity/working efficiency and reduce bad rate of silicon-steel pads.
機  型
Model
X
(mm)
Y
(mm)
Z
(mm)
馬  力
Motor Power
速  度
Speed. pcs/min
E-19 19   12.5
E-24 24   15
E-26 26   16
EI-28 28 25.2   40W 400 pcs / min
EI-35 35 29.5   40W 400 pcs / min
EI-41 41 33   40W 400 pcs / min
EI-48 48 40   40W 400 pcs / min
EI-54 54 45   60W 400 pcs / min
EI-57 57 47.5   60W 400 pcs / min
EI-60 60 50   60W 400 pcs / min
EI-66 66 55   60W 400 pcs / min
EI-76.2 76.2 63.5   60W 400 pcs / min
EI-78 78 65   60W 400 pcs / min
EI-85.8 85.8 71.5   60W 400 pcs / min
EI-95 95 82.5   1/2HP 320 pcs / min
EI-96 96 80   1/2HP 320 pcs / min
EI-102 102 89   1/2HP 320 pcs / min
EI-105 105 87.5   1/2HP 320 pcs / min
EI-111 111 96.5   1/2HP 320 pcs / min
EI-120 120 100   1/2HP 320 pcs / min
EI-130 130 113   1/2HP 320 pcs / min
EI-171 171 142.5   1/2HP 320 pcs / min

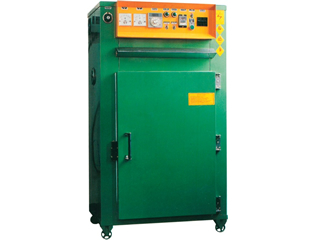

WCE-205A

Single Door Type Auto Temperature Heat Oven

單門自動恆溫烤箱

  • 應用: 變壓器、電感器、鎮流器、玩具、五金及塑膠類烘烤。
  • Application: Transformer, choke, lighting ballast, toys, etc.
機  型 Model WCE-205A
恒溫範圍 Temp. Range 30°C ~ 200°C
溫  差 Temp. Difference ±3°C ~ ±5°C
氣  壓 Air Pressure 6 kg/cm²
電  源 Electric Source AC220V 50/60Hz 3phase 380VAC
內尺寸 Inner Dimension 600(L) x 500(W) x 1000(H) mm
機體尺寸 Unit Dimension 850(L) x 750(W) x 1700(H) mm
機體重量 Unit Weight 150 kgs

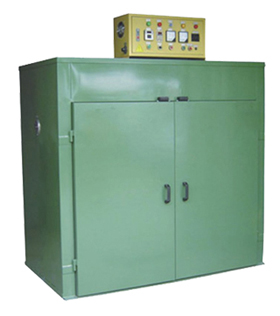

WCE-205B

Twin Door Type Auto Temperature Heat Oven

雙門自動恆溫烤箱

  • 應用: 變壓器、電感器、鎮流器、玩具、五金及塑膠類烘烤。
  • 採用水平運風,升溫快,溫度內部溫差小±5°C ~ ±7°C。
  • 保溫效果良好,採用進口優質石棉。
  • 四大保護系統,使用安全.
  • 易於操作,便於觀察。
  • Application: Transformer, choke, lighting ballast, toys, etc.
  • Adopted with a horizontal air flowing ventilation system,
    fast heating up and keeping inner room at a constant
    temperature, tolerance allowed only +/- 5°C to +/-7°C.
  • Excellent heat retaining performance, good quality of
    imported asbestos in use.
  • Four protective systems equipped to secure the greatest
    safety.
  • Easy to operation and monitoring.
機  型 Model WCE-205B
恒溫範圍 Temp. Range 30°C ~ 200°C
溫  差 Temp. Difference ±5°C ~ ±7°C
氣  壓 Air Pressure 6 kg/cm²
電  源 Electric Source AC380V 50/60Hz 9~12KW
內尺寸 Inner Dimension 1500(L) x 800(W) x 1300(H) mm
機體尺寸 Unit Dimension 1750(L) x 950(W) x 1960(H) mm
機體重量 Unit Weight 300 kgs
另購配備 Optional Device 可配推車使用,可根據客戶要求訂做。
Trolley (allow order as requirement.

Specifications and design are subject to change without notice for improvements.
