裁線剝皮機系列 / Cutting & Stripping Machine Series

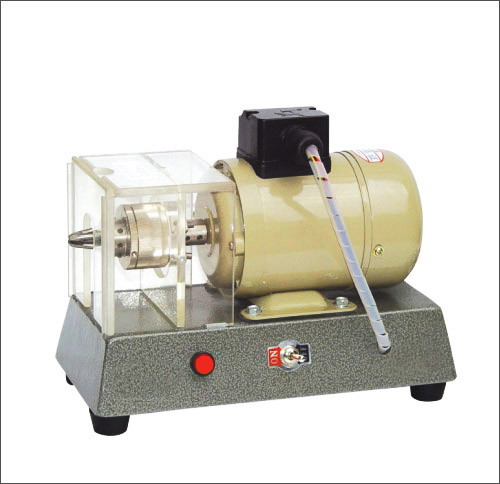

WCE-310

Wire Polisher

漆包線脫漆機(單股)

  • PE、PVF、APB…各種耐高溫漆包線
    絕緣膜用之剝離器。
  • 線徑範圍0.5 ~ 5.0 mm。
  • 同一線徑量產最適用(單股、圓線)。
  • 定置式剝離器,效率高。
  • 扭曲線一樣可脫乾淨迅速,而且不斷線。
  • 線徑(刀口)調整迅速,切換規格容易。
  • Strip any kind of PE, PVF, APB...high
    temperature resisted enamel wire.
  • Wire diameter range: 0.5 ~ 5.0 mm
  • Suitable for same diameter of wire
    stripping for mass production.
  • Desk-top type, no need extra hand holding.
  • Twisted wire can be stripped thoroughly without break.
  • Adjustable tripping hold, easy for make adjustment.
機  型 Model WCE-310
線徑 Wire Diameter 0.5 ~5.0mm
電  源 Electric Source AC 220V 50/60Hz 25W
機體尺寸 Unit Dimension 260(L) x 150(W) x 230(H) mm
機體重量 Unit Weight 10 kg

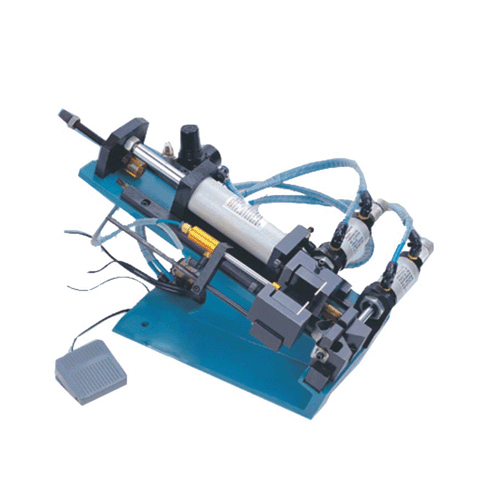

WCE-380

Wire Stripper

剝皮扭線機

  • 適用於AC/DC電源線、電子線、
    多心線條橡膠線及隔離線。
  • 單心脫扭線材,其規格由AWG 22 ~ AWG 14。
  • 特殊彈簧鈎,扭線時末端尖細,不易鬆脫。
  • 特殊機械結構,脫扭線材,一次完成。
  • Applicable for AD/DC wire, electrical wire, shielded wire
    etc.
  • For solid wire stripping and twisting use, suitable for
    AWG 22 ~ AWG 14.
  • Special spring hook, it delivers a tapering end while twisting.
  • Special mechanical design, it can strip and twist wire at the same time in a cycle.

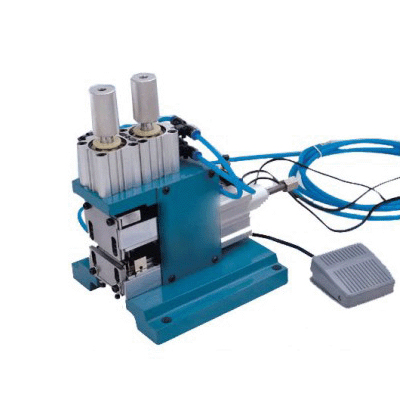

WCE-230

Stripping Machine (Compact Type)

直立式剝皮機

  • 任何線徑之平剝及圓線脫皮均適用。
  • 改良傳統電腦心線剝皮右腳踏手拉方式,
    改進成前夾後退。
  • 且僅需一組刀具即可,適用任何線徑之脫皮。
  • 特殊鋁合金機體及氣缸,堅韌耐磨耗且不易
    銹蝕,操作無聲壽命長,輕便易携帶。
  • 僅需一組刀具,節省刀具費用,且刀具壽命達
    100萬次以上。
  • Applicable for any size of wire with flat strip or round strip.
  • An improvement of stripping system for conventional computer wires, it strips off wire with a front clip and back strip movement.
  • A set of stripping tooling/ blade for any size of wire.
  • Special alloy body and cylinder built, it gives a steadily and wearable performance, low working noise and easy to carry.
  • Save cost, only a set of blade needed for all wire size stripping application.
    Self-life of blade can last for 1,000,000 stripping.

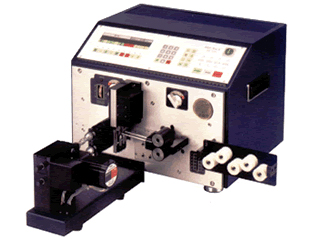

WCE-220
WCE-220T

Auto Wire Cut, Strip & Twist Machine

自動裁線剝皮扭線機

Front twist
前端扭線
Short wire stripping
短線剝皮
Rear twist
後端扭線
Front (Rear) stripping
前(後)端剝皮
Both ends same direction twist
兩端同方向扭線
Front (Rear) Half-stripping
前(後)端半剝皮
Both ends different direction twist
兩端反方向扭線
Tri-section stripping
三段式剝皮

  • 針對電子線、矽膠線、鐵弗龍線、玻璃纖維線、隔離線、
    同軸線、套管等。全自動剪裁、剝皮、半剝、中間剝皮、
    扭線特殊功能,可瞬間變換電線規格及尺寸。
  • 電子產品傾向輕、薄、短、小之要求,故所需電線也趨
    向細線、短線及高精度,本機正好能發揮其最大長處。
    以往被視為很難加工的50mm之內的短線,現在並無任何
    困難,甚至總長度僅有1mm時,兩端亦可同時各剝皮
    0.3mm。同時可分別設定送線、進刀、退刀再脫皮及脫皮
    速度,對於隔離線亦可強制脫皮,排除了以往隔離線不能
    全剝及傷到心線之困擾。
  • Applicable for Electric wire, Teflon, Coaxial cable, fiber
    wire and tube etc. Fully automatic cutting, stripping,
    half-stripping, middle stripping and twisting functions.
  • This machine meet the requirements of modern electronic features such as light, short & thin, small and high precision. Even a difficult processing wire1mm to 50mm it can be overcame. For example, the length is 1mm both ends strip 0.3mm can be made, even insulation wire can be stripped to a length of 99mm.
機  型 Model WCE-220/220T
適用線徑 Applicable Size AWG#14~AWG#32 (Depends on wire material視線材而定)
剝皮長度 Stripping Length 0.1~99.9mm (Depends on wire material視線材而定)
切斷長度 Cutting Length 0.1~99999.9mm (Depends on wire material視線材而定)
切斷誤差 Cutting Tolerance 可修正 Adjustable
電  源 Electric Source AC 220V 50/60Hz
機體尺寸 Unit Dimension 450(L) x 720(W) x 360(H) mm
機體重量 Unit Weight 39 kg
產量 Production :
Wire Length WCE-220 WCE-220T
20mm (3x3mm) 11860 pcs / Hour -
50mm (3x3mm) 9080 pcs / Hour 正轉Same direction
反轉Different direction
4260 pcs
5080 pcs
100mm (3x3mm) 8420 pcs / Hour 正轉Same direction
反轉Different direction
4090 pcs
4860 pcs
500mm (3x3mm) 5380 pcs / Hour 正轉Same direction
反轉Different direction
3210 pcs
3660 pcs

Specifications and design are subject to change without notice for improvements.
