自動繞線機系列 / Auto Winding Machine Series

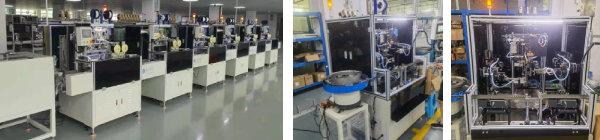

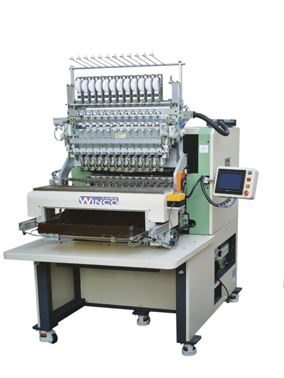

WCE-8008/8012/8016/8020
8/12/16/20 Spindles Auto Axis Winding Machine
8/12/16/20軸全自動繞線機
- 本系列機械的關鍵部件及零件全部採用日本進口, 可靠性強,
耐用度高, 大大提升機器穩定性及壽命。 - 編程採用電腦或觸摸屏, 可自由選擇。
- 獨特快速接頭夾具設計, 減少換型時間。
- 導針杆0°/90°/135°可自由選配安裝,方便不同角度骨架繞線。
- 使用精密帶反張力控制張力器, 排線更整齊。
- 主體機身全部採用鑄鐵精密加工制作,機身堅固,穩定性良好。
- 選擇配備(1): 自動上下料功能/ 自動包膠布功能/ 自動夾線,
斷線,排除廢線功能。 - 選擇配備(2): 可增加剪刀或切刀功能/ 增加伺服手指與送線裝置。
- Core components are all imported from Japan,high reliability and durability, greatly increase life of the machine and performances.
- Program through the computer or touch panel.
- Unique quick & easy coupling fixture design, reduce the time of changing type of model.
- Nozzle beam positioning, option from 0°/90°/135° for easy winding different angles.
- Use the precision tensioner with anti-tension control function, delivers a nice and even spreading results.
- Main body of machine is made of heavy cast iron, ensures stability.
- A novel design, simple structure, easy operation and easy maintenance.
- Password protection.

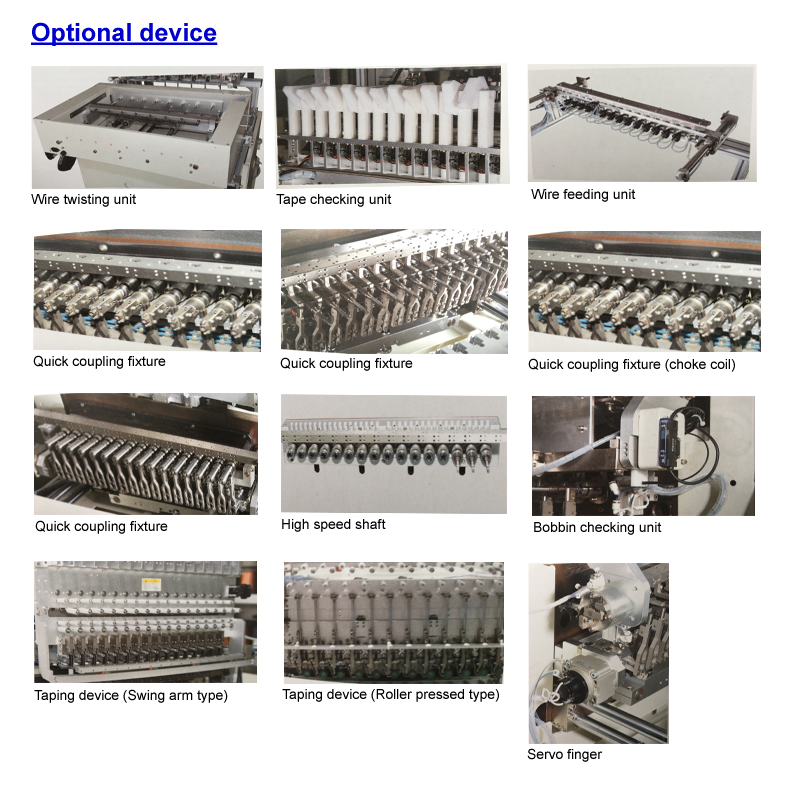

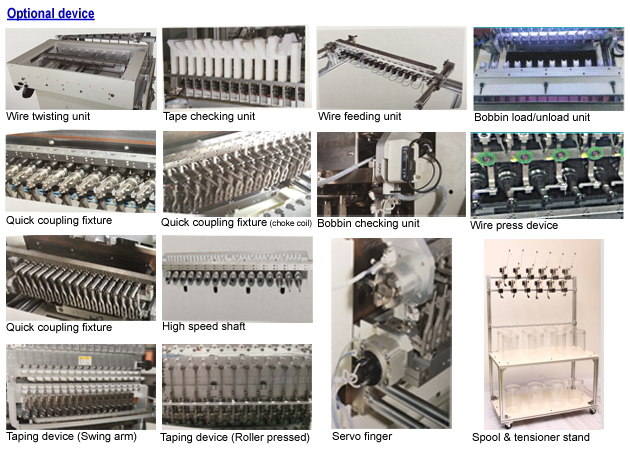

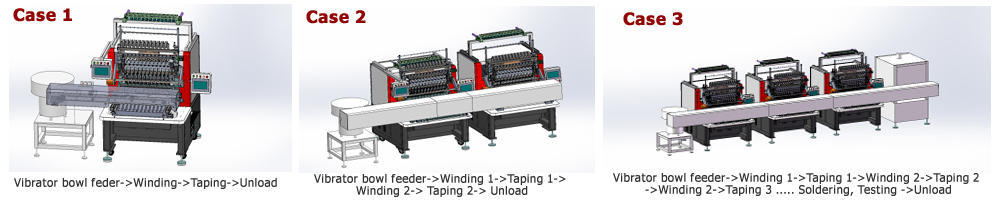

- Optional functions(1): auto loading and unloading/auto taping/ auto wire clip,break wire,waste wire discharge.
- Optional device (2):Auto skeiner/ pneumatic scissors or cutter/ auto remove enamel wire layer device.
| 機 型 | Model | WCE-8008 | WCE-8012 | WCE-8016 | |||
| 主軸數 | No. of Spindle | 8 | 12 | 16 | |||
| 線徑(厘米) | Wire Dia. (mm) | 0.02 ~0.4 | 0.02 ~0.4 | 0.02 ~0.4 | |||
| 主軸速度(轉) | Spindle Speed(rpm) | 12000 | 12000 | 1200 | |||
| 線圈外徑 | Frame Max. | 40 mm | 35/60 mm | 35 mm | |||
| 主軸間距 | Spindle Pitch | 45 mm | |||||
| 主軸伺服馬達功率 | Servo motor power | 750W/1500W/3000W(Option) | |||||
| XYZ軸移動距離 | XYZ axis moving distance | X:110, Y:150, Z:70 | |||||
| 接口內徑 | Spindles diameter | 10mm(standard)/ 12mm(special) | |||||
| XYZ移動速度 | XYZ axis speed | 200mm/sec | |||||
| 控制系統 | Control System | Programmable logic controller | |||||
| 電 源 | Electric Source | AC220V 50/60Hz | |||||
| 尺寸(cm) (長)x(寬)x(高) |
Dimension(cm) (L)x(W)x(H) |
1350x1250x1400 | 1350x1250x1400 | 1350x1250x1400 | |||
| 機體重量 | Unit Weight | 750 kg | 800 kg | 850 kg | |||
| 選擇配備 | Optional Device | Auto loading & unloading, Pneumatic scissor, auto taping, auto wire clip/break/discharge, auto remove enamel layer | |||||

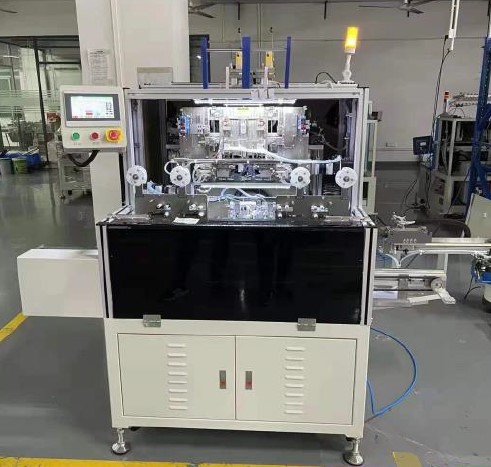

WCE-8101TUWT
Auto Tube insert, Winding & Taping Machine
- for Waterproof IP rating transformer
單/雙軸自動穿套管繞線包膠帶機
- 本系列機械的關鍵部件及零件全部採用日本進口, 可靠性強,
耐用度高, 大大提升機器穩定性及壽命。 - 編程採用電腦或觸摸屏, 可自由選擇。
- 獨特快速接頭夾具設計, 減少換型時間。
- 使用精密帶反張力控制張力器, 排線更整齊。
- 主體機身全部採用鑄鐵精密加工制作,機身堅固,穩定性良好。
- Core components are all imported from Japan,high
reliability and durability, greatly increase life of the
machine and performances. - Program through the computer or touch panel.
- Unique quick & easy coupling fixture design, reduce
the time of changing type of model. - Use the precision tensioner with anti-tension control function, delivers a nice and even spreading results.
- Main body of machine is made of heavy cast iron, ensures stability.
- A novel design, simple structure, easy operation and easy maintenance.
- Password protection.
- For WaterProof IP rating transfromer sleeving (tube) manufacturing.
| 機 型 | Model | WCE-8101TUWT |
| 主軸數 | No. of Spindle | 1 or 2 |
| 線徑(厘米) | Wire Dia. (mm) | 0.1 ~0.7 or strand wire |
| 主軸速度(轉) | Spindle Speed(rpm) | 10,000 |
| 控制系統 | Control System | Programmable logic controller |
| 電 源 | Electric Source | AC220V 50/60Hz |
| 尺寸(cm) (長)x(寬)x(高) |
Dimension(cm) (L)x(W)x(H) |
1350x1250x1400 |
| 機體重量 | Unit Weight | 550 kg |

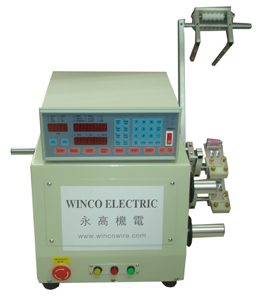

WCE-801
CNC Auto Winding Machine
(One Spindle)
可程式自動繞線機(單軸側面繞線)
Wire Range: 0.05~1.0mm

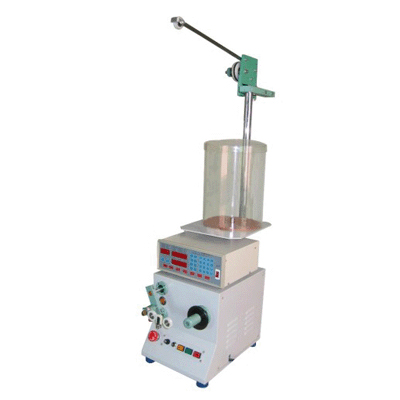

WCE-801F
CNC Auto Winding Machine
(One Spindle)
可程式自動繞線機(單軸側面繞線)
Wire Range: 0.05~1.0mm

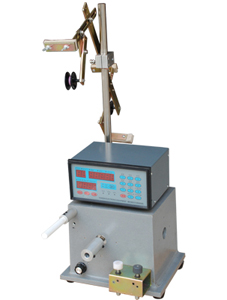

WCE-801C
CNC Auto Winding Machine
(Manual Spreading)
自動繞線機(單軸人手排線)
Wire Range: 1.0~3.0mm

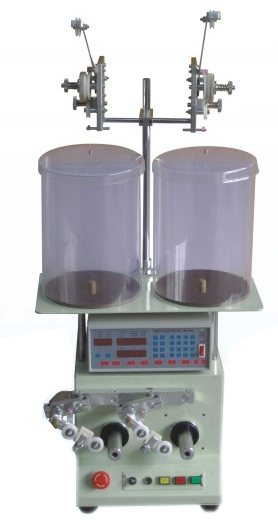

WCE-802
CNC Auto Winding Machine
(Two Spindles)
可程式自動繞線機(雙軸側面繞線)
Wire Range: 0.02~0.6mm
WCE-802F
CNC Auto Winding Machine
(Two Spindles)
可程式自動繞線機(雙軸正面繞線)
Wire Range: 0.02~0.4mm

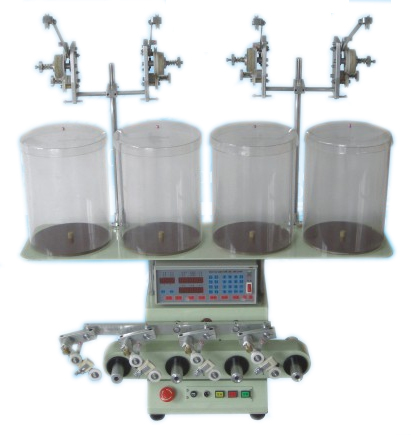

WCE-804F
CNC Auto Winding Machine
(Four Spindles)
可程式自動繞線機(四軸正面繞線)
Wire Range: 0.02~0.2mm

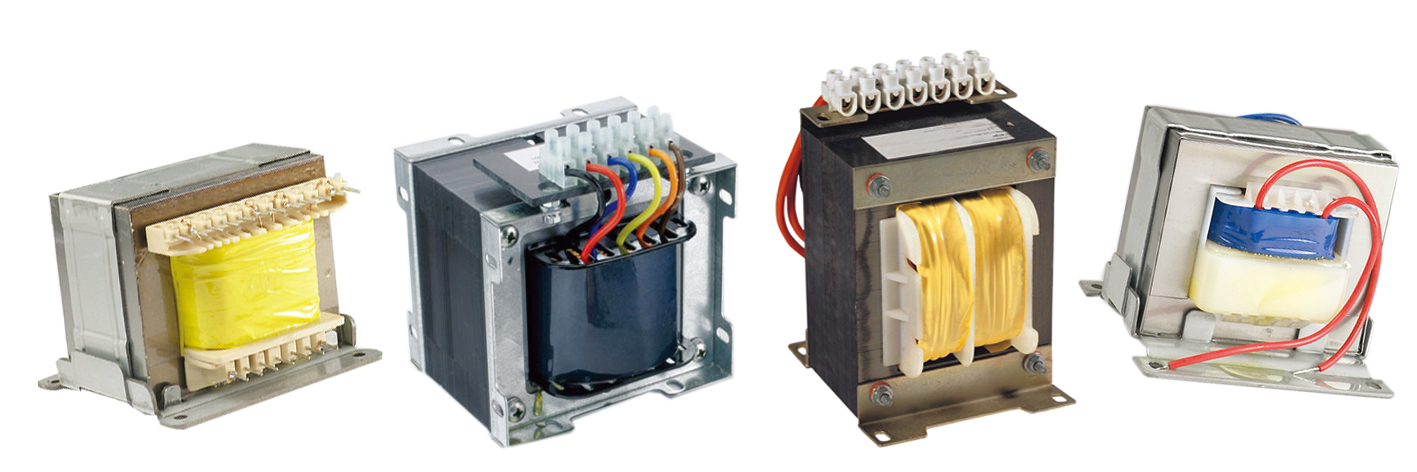

- 適輕易設定起繞點幅度, 正逆轉, 由高精度步進排線馬達及主軸馬達轉動. 適合於生產小型變壓器、電源變壓器、繼電器、高壓點火線圈、交換式電源變壓器。
- Suitable for Mini Transformer, Power Suppler Transformer, Relay, High Voltage Ignition Coil and exchangeable Power Supply Transformer manufacturing etc. Easy setting and high precision of spreading control.
| 機 型 | Model | WCE-801 | WCE-801F | WCE-801C | WCE-802 | WCE-802F | WCE-804F |
| 主軸數 | No. of Spindle | 1 | 1 | 1 | 2 | 2 | 4 |
| 線徑(厘米) | Wire Dia. (mm) | 0.05 ~1.0 | 0.05 ~1.0 | 1.0 ~3.0 | 0.02 ~0.6 | 0.02 ~0.4 | 0.02 ~0.2 |
| 主軸速度(轉) | Spindle Speed(rpm) | 3000 | 3000 | 1400 | 3000 | 6000 | 6000 |
| 線圈外徑 | Frame Max. | 100 mm | 100 mm | 130 mm | 130 mm | 100 mm | 100 mm |
| 線 距 | Wire Pitch | 0.01 ~ 9.99 mm | |||||
| 控制方式 | Control Mode | 微電腦控制Micro Computer Control | |||||
| 記憶容量 | Memory Capacity | 0 ~ 999 Inputs / 可儲存0 ~ 999步序 |
|||||
| 排線寬度 | Traverse Width | 1 mm ~ 100 mm setting unit by 0.01 mm / 設定單位0.01mm按鍵設定 |
|||||
| 主軸馬達 | Main Motor | AC or DC Motor (no brush) / 交流或直流馬達 (無刷) |
|||||
| 排線馬達 | Traverse Motor | Stepping Motor : Step Angle 0.9 DEG / 步進馬達 : 步序角度 0.9 DEG |
|||||
| 電 源 | Electric Source | AC220V 50/60Hz | |||||
| 尺寸(cm) (長)x(寬)x(高) |
Dimension(cm) (L)x(W)x(H) |
40x60x45 | 66x60x110 | 66x75x50 | 40x60x45 | 66x60x110 | 66x102x110 |
| 機體重量 | Unit Weight | 32 kg | 30 kg | 15 kg | 34 kg | 34 kg | 68 kg |
| 選擇配備 | Optional Device | Tension Meter, Reel Cover, Tail Support / 張力器，線軸筒，尾座支撐 |
|||||
WCE-801LTA
WCE-801LTB
Digital Large Torque Winding Machine
大扭力排線專用繞線機
- 適合繞高或低頻變壓器，及大型變壓器。
- 最大線徑可繞到3.0mm。
- 可改裝為落地式。
- Ideal for high or low voltage
transformer and large transformer. - Suitable for Wire size maximum to 3.0mm.
- Machine can be refitted to ground type.
| 機 型 | Model | WCE-801LTA | WCE-801LTB |
| 主軸數 | No. of Spindle | One Spindle | |
| 控制方式 | Control Mode | 電腦數控，自動排線，自動停機 Micro Computer Control, auto spreading and auto stop |
|
| 記憶容量 | Memory Capacity | 0 ~ 999 Inputs(步序) | |
| 主軸速度 | Speed of Spindle | 1100 rpm | 1100 rpm |
| 線 徑 | Wire Diameter | 0.5 ~1.6 mm | 0.5 ~3.0 mm |
| 排線寬度 | Traverse Width | 200 mm | 200 mm |
| 主軸馬達 | No. of Spindle | Three-phase AC 1 HP | |
| 排線馬達 | Traverse Motor | 步進馬達Stepping Motor | |
| 電 源 | Electric Source | AC200V 50/60Hz | |
| 機體尺寸 | Unit Dimension (mm) | 390(L) x 580(W) x 430(H) | 700(L) x 520(W) x 600(H) |
| 機體重量 | Unit Weight | 52 kgs | 52 kgs |
Specifications and design are subject to change without notice for improvements.
