點膠機系列 / Auto Liquid Dispensing Machine Series

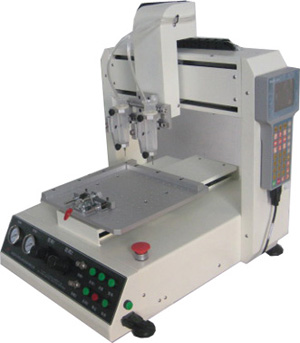

WCE-R300B

Compact Type Auto Liquid Dispensing
Machine

智能型臺式點膠機

  • 一種產品點塗多種膠可一次完成。
  • 適用於流體點膠。例如: UV膠、EPOXY(黑膠)、
    白膠、EMI導電膠、SILICON、環氧樹脂、瞬間膠、
    銀膠、紅膠、錫膏、散熱膏、防焊膏、透明漆、
    螺絲固定劑等。
  • 應用於手機、電腦外殼、光碟機、印表機、墨水夾、PC板、
    LCD、LED、DVD、數位相機、開關、連接器、繼電器、散熱器、
    半導體等電子業，或與SMT設備連線快速點膠、時鐘、玩具業、醫療器材等。
  • 具有畫點、線、面、弧、圓、不規則曲線連續補間輸入程式等功能。
  • 膠量大小粗細、塗膠速度、點膠時間、停膠時間皆可參數設定，出膠量穩定，不漏滴膠。
  • 採用微步進馬達，作為X,Y,Z三軸的運動動力源，使機器運行高速、準確和穩定。
  • Suitable for Fluid dispensing, such as: UV glue, EPOXY(vinyl), white glue, EMI conductive glue, SILICON, epoxy, instant glue, silver glue, red glue, paste, thermal grease, anti-paste, lacquer, screw fixation, liquid dispensing etc.
  • Applied to Mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.
  • Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.
  • Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking.
  • Adopted with micro stepping motor for XYZ motion control, deliver a precise and stable speedy motion dispensing.
  • A variety of dispensing can be fulfilled.
機  型 Model WCE-R300B
工作範圍 Dispensing range (X) 300 *(Y) 300 *(Z) 80 mm
最大速度 Max. Speed 500mm / sec
機械精度 Precision ± 0.02 mm
重覆精度 Repeatiability ± 0.02 mm
操作系統 Operating System 編輯器+控制卡Control Card with Touch keys editor
傳動系統 Drive System 微步進馬達或皮帶Micro Stepping motor or Belt
電  源 Electric Source AC 220V 50/60Hz ; 0.75KW
機體尺寸 Unit Dimension 550(L) x 640(W) x 660(H) mm
機體重量 Unit Weight 50 kg
另購配備 Optional Device
  1. 膠槍，料盤自動加熱裝置系統
  2. 多個點膠針頭，可與各種膠槍和儲膠桶連接.
  1. Glue pistols, automatic tray heating system.
  2. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection.

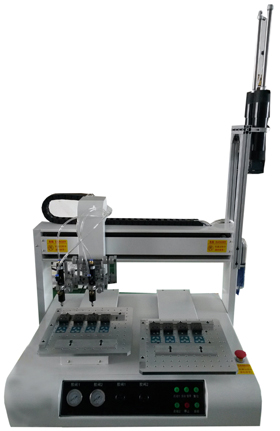

WCE-R300B2Y

Auto Liquid Dispensing Machine
(Single/ Dual Syringe & Slide platform Type)

智能型雙臺式點膠機(單/雙頭雙料盤裝置)

  • 此機台提供單或雙部件之墊圈、封膠或點膠工序。
    雙頭裝置系統及雙工作位料盤。閉合工序精準及穩定，
    保證點膠品質。可循環作業，節省勞工及生產成本。
  • 一種產品點塗多種膠可一次完成。
  • 具有畫點、線、面、弧、圓、不規則曲線連續補間
    輸入程式等功能。
  • 膠量大小粗細、塗膠速度、點膠時間、停膠時間皆可
    參數設定，出膠量穩定，不漏滴膠。
  • 採用微步進馬達，作為X,Y,Z三軸的運動動力源，
    使機器運行高速、準確和穩定。
  • The WCE-R300B2Y is ideal for single or dual-component
    gasket, potting, or dot placement processes. With dual headed Syringe guns & slide working trays system providing a high level of productivity. No idle while waiting for dispensing in process, operators are free to load and unload tray that being dispensed.
    It also delivers a closed-loop process that is consistent and reliable. Save labor & production cost.
  • Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.
  • Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking.
  • Adopted with micro stepping motor for XYZ motion control, deliver a precise and stable speedy motion dispensing.
  • A variety of dispensing can be fulfilled.
應用 Application :

手機、電腦外殼、光碟機、印表機、墨水夾、PC板、LCD、LED、DVD、數位相機、開關、連接器、繼電器、散熱器、半導體等電子業，或與SMT設備連線快速點膠、時鐘、玩具業、醫療器材等

Applied to Mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.

適用於流體點膠 Suitable for Fluid Dispensing :

例如: UV膠、EPOXY(黑膠)、白膠、EMI導電膠、SILICON、環氧樹脂、瞬間膠、銀膠、紅膠、錫膏、散熱膏、防焊膏、透明漆、螺絲固定劑等。

Ex: UV glue, EPOXY(vinyl), white glue, EMI conductive glue, SILICON, epoxy, instant glue, silver glue, red glue, paste, thermal grease, anti-paste, lacquer, screw fixation, liquid dispensing etc.

機  型 Model WCE-R300B2Y
工作範圍 Dispensing range (X) 600 *(Y) 300 *(Z) 80 mm
最大速度 Max. Speed 500mm / sec
機械精度 Precision ± 0.015 mm
重覆精度 Repeatiability ± 0.02 mm
操作系統 Operating System 手持盒編輯器+四軸運動控制卡Hand held Control Card+Touch keys editor.
傳動系統 Drive System X, Y1, Y2, Z 互動方式採用微步進馬達或進口皮帶+高精密直線導軌。
X,Y1,Y2 & Z use micro stepping motor or Imported belt + high precision linear guide way.
單/雙頭裝置 Single/ Twin pistols device 單/兩把膠閥和單/兩個330ML硅膠套筒
Single/ Dual plastic valves & Single/ Dual 330ML silicon syringes.
電  源 Electric Source AC 220V 50/60Hz ; 0.75KW
機體尺寸 Unit Dimension 850(L) x 640(W) x 660(H) mm
機體重量 Unit Weight 80 kg
另購配備 Optional Device
  1. 膠槍，料盤自動加熱裝置系統
  2. 多個點膠針頭，可與各種膠槍和儲膠桶連接.
  1. Glue pistols, automatic tray heating system.
  2. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection.

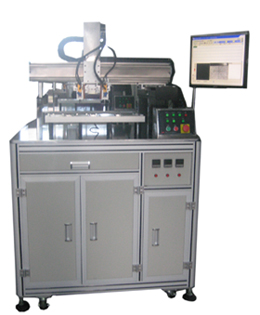

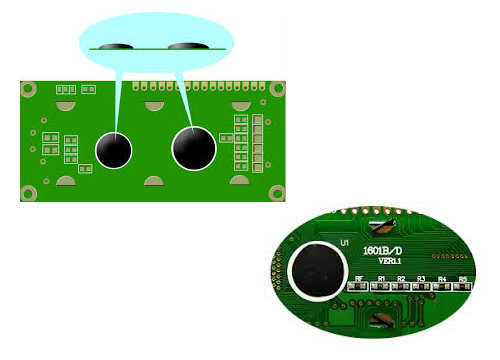

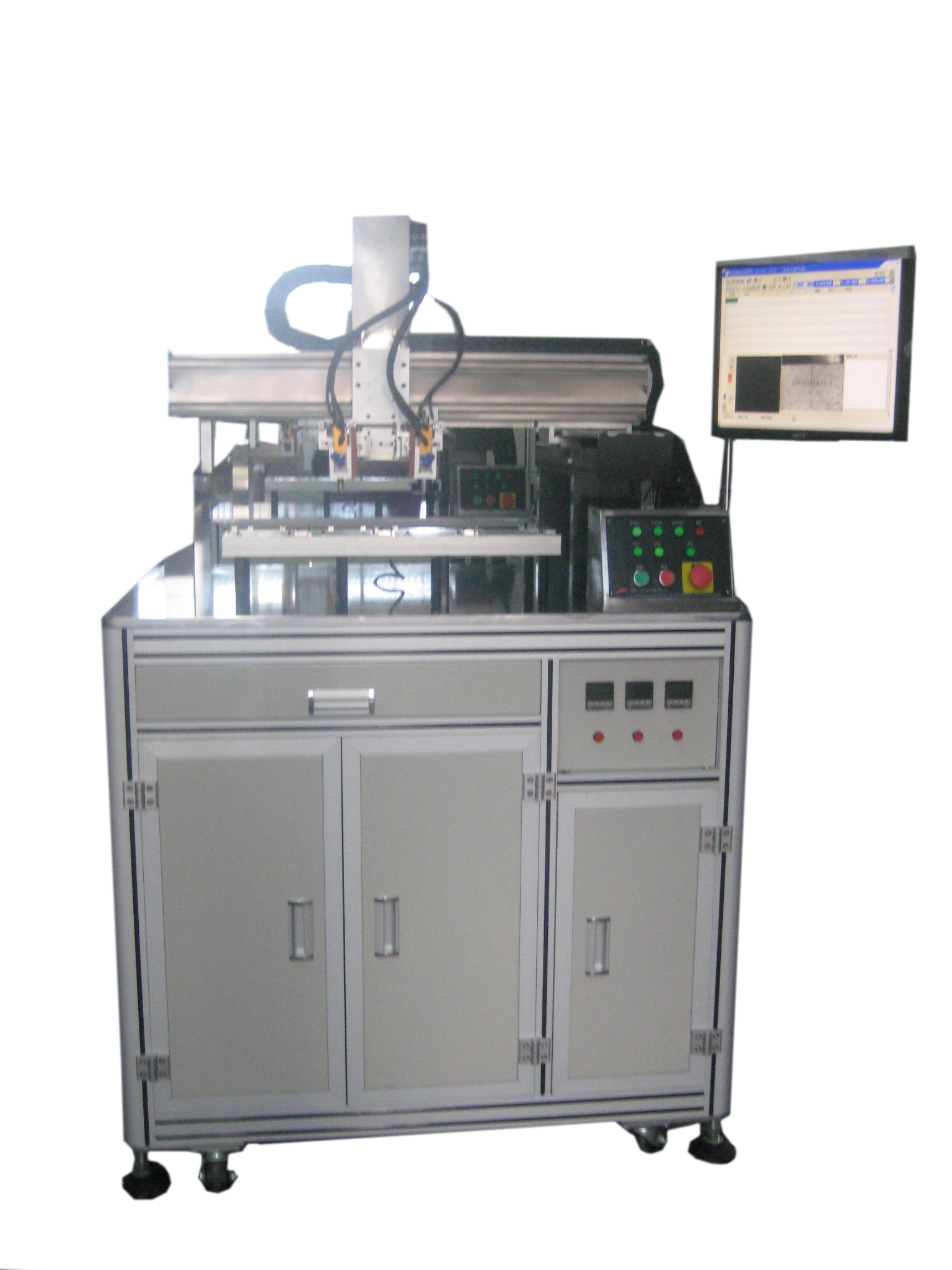

WCE-R650A

Auto COB Liquid Dispensing Machine

落地式COB自動點膠機

  • 使用Windows2000/XP中英文操作系統。
  • 具有畫點、線、面、弧、圓、不規則曲線連續補間輸入程式等功能。
  • 電腦儲存記憶容量大，且軟體具有平移旋轉運算，區域複製及鏡射等功能。
  • 膠量大小粗細、塗膠速度、點膠時間、停膠時間皆可參數設定，出膠量穩定，不漏滴膠。
  • 採用日本松下伺服馬達作為X、Y、Z三軸的運動動力源。使機器運行高速、準確、穩定。
  • 配置CCD輔助程式、編輯及教導功能。具有視覺影像自動靶標定位辨識功能、移動軌跡位置、追蹤及生產產量統計等功能。以節省且簡化工作、精准定位程序時間，提高生產品質及工作效益。
  • 膠槍和工作台含加熱系統。
  • 一種產品點塗多種膠可一次完成。
  • Use Windows2000/XP Operating System.
  • Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.
  • Large data storage capacity. Software with functions of lines, area, lens setting.
  • Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking.
  • Adopted with "Panasonic" servo motor for XYZ motion control,
    deliver a precise and stable speedy motion dispensing.
  • Employs a CCD camera which allows to view and precise position the dispenser route, provides tracking route, production counting. Save times in adjusting work & increase productivity.
  • Plastic pistol and working area with heating system.
  • A variety of dispensing can be fulfilled.
應用 Application :

手機、電腦外殼、光碟機、印表機、墨水夾、PC板、LCD、LED、DVD、數位相機、開關、連接器、繼電器、散熱器、半導體等電子業，或與SMT設備連線快速點膠、時鐘、玩具業、醫療器材等

Applied to Mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.

適用於流體點膠 Suitable for Fluid Dispensing :

例如: UV膠、EPOXY(黑膠)、白膠、EMI導電膠、SILICON、環氧樹脂、瞬間膠、銀膠、紅膠、錫膏、散熱膏、防焊膏、透明漆、螺絲固定劑等。

Ex: UV glue, EPOXY(vinyl), white glue, EMI conductive glue, SILICON, epoxy, instant glue, silver glue, red glue, paste, thermal grease, anti-paste, lacquer, screw fixation, liquid dispensing etc.

機  型 Model WCE-R650A
工作範圍 Dispensing range (X) 650 *(Y) 300 *(Z) 80 mm
最大速度 Max. Speed 500mm / sec
機械精度 Precision ± 0.015 mm
重覆精度 Repeatiability ± 0.015 mm
操作系統 Operating System Windows2000/XP
傳動系統 Drive System 松下伺服馬達/滾珠絲桿 Panasonic servo motor/ Needle bearing
操作軟件 Operating Software Self-developed dispensing software (CCD software)
電  源 Electric Source AC 220V 50/60Hz ; 1.5KW
機體尺寸 Unit Dimension 1200(L) x 950(W) x 1600(H) mm
機體重量 Unit Weight 450 kg
另購配備 Optional Device
  1. MARKER點自動對位校準
  2. 自動進出雙料盤
  3. 膠槍，料盤自動加熱裝置系統.
  4. 多個點膠針頭，可與各種膠槍和儲膠桶連接。
  1. MARKER with auto positioning & adjusting function.
  2. Automatic in/out twin trays system
  3. Glue pistols, automatic tray heating system.
  4. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection.

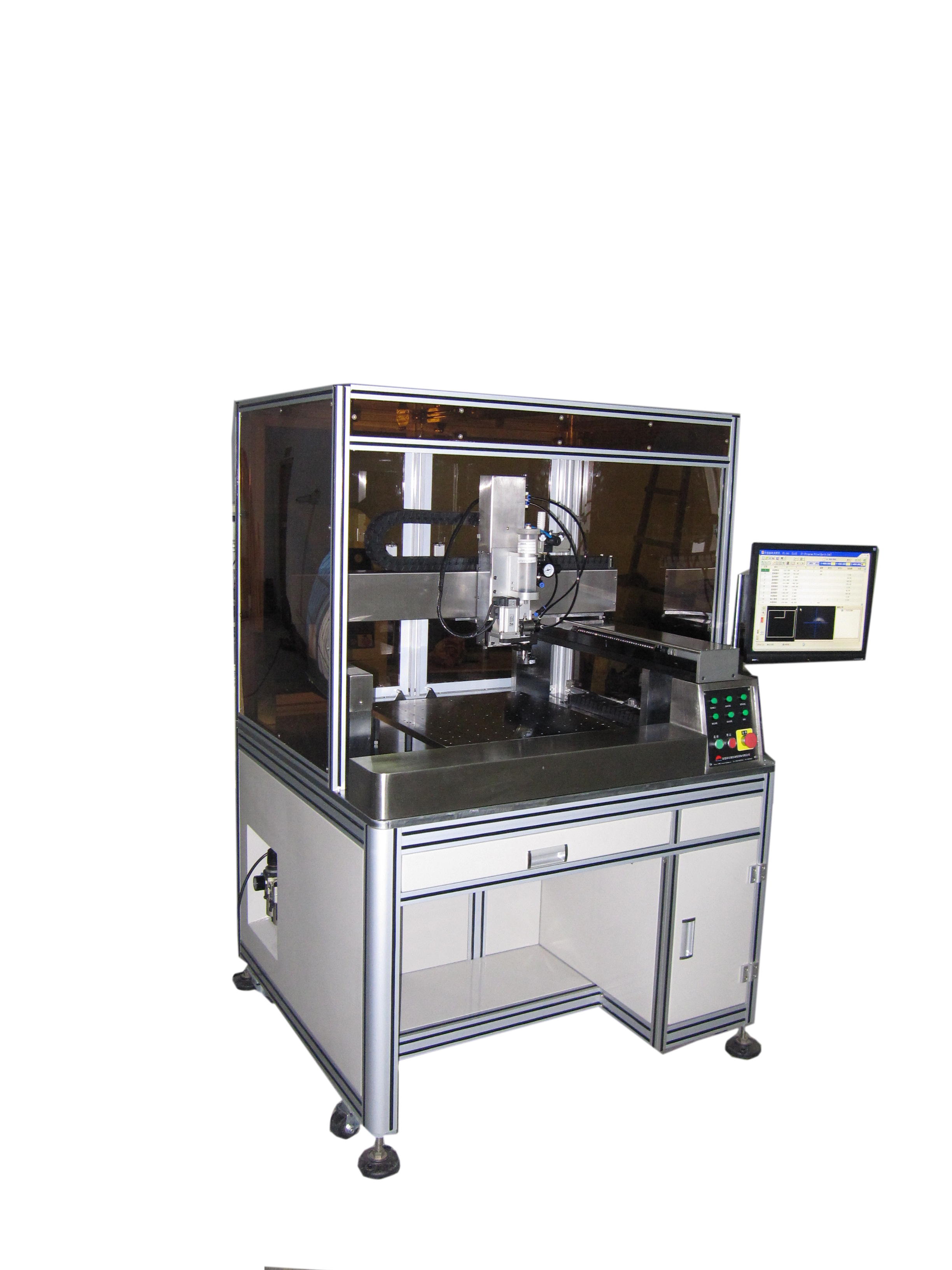

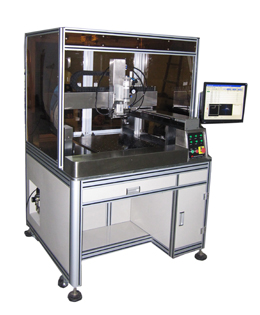

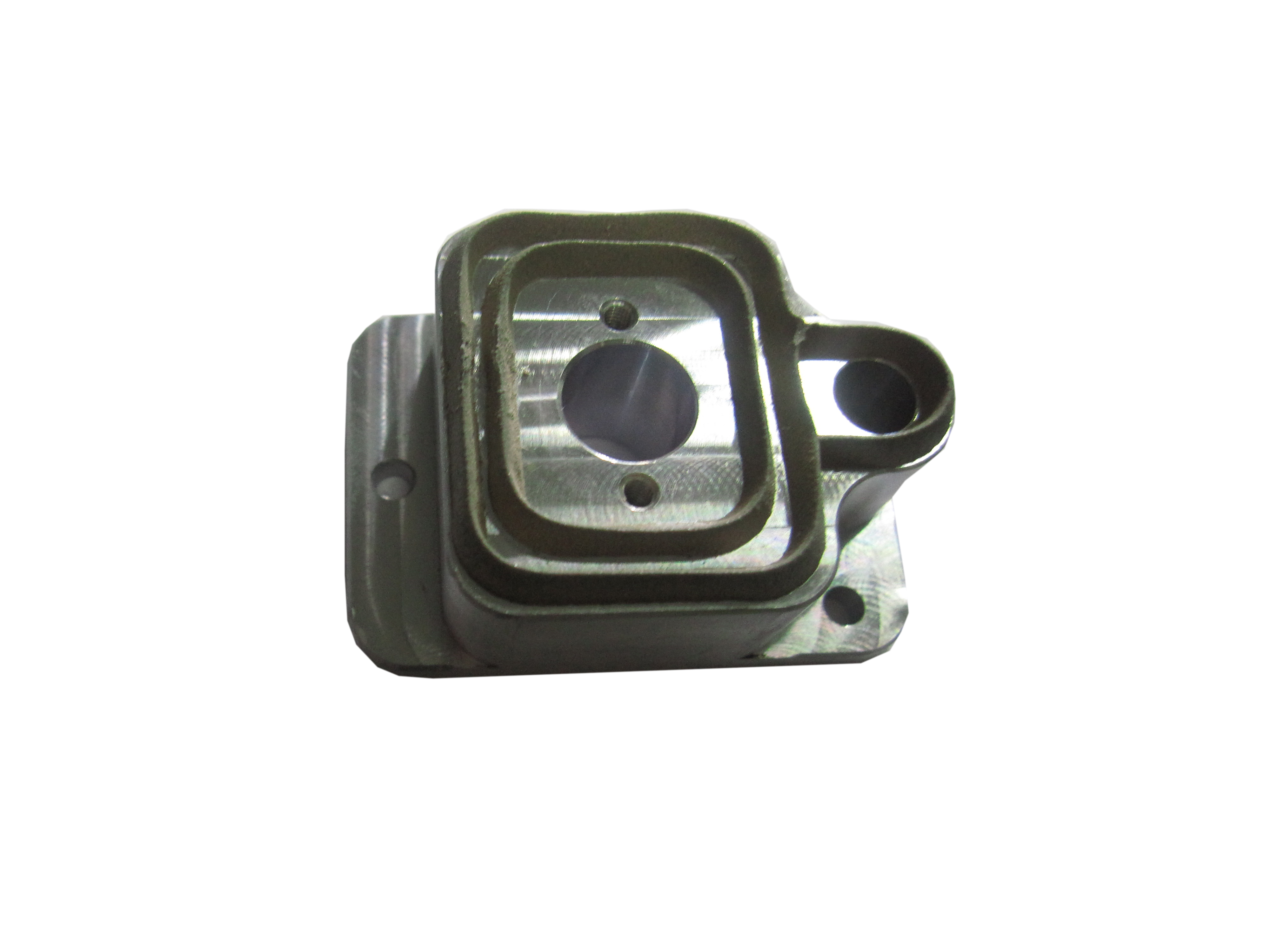

WCE-R500A

Auto Liquid Dispensing Machine
(Conductive Glue Dispensing with Rotary Axis)

導電膠四軸旋轉針頭式自動點膠機

  • 針頭智能跟隨路徑自動作方向旋轉，使落在工作件上的導電膠
    形成三角形立體形狀。
  • 電腦儲存記憶容量大，且軟體具有平移旋轉運算，區域複製及鏡射等功能。
  • 具有畫點、線、面、弧、圓、不規則曲線連續補間輸入程式等功能。
  • 配置CCD輔助程式、編輯及教導功能。具有視覺影像自動靶標定位辨識功能、移動軌跡位置、追蹤及生產產量統計等功能。以節省且簡化工作、精准定位程序時間，提高生產品質及工作效益。
  • 使用Windows2000/XP中英文操作系統。
  • 膠槍和工作台含加熱系統。
  • 一種產品點塗多種膠可一次完成。
  • 膠量大小粗細、塗膠速度、點膠時間、停膠時間皆可參數設定，出膠量穩定，不漏滴膠。
  • 採用日本松下伺服馬達作為X、Y、Z三軸的運動動力源。使機器運行高速、準確、穩定。
  • 針頭自動旋轉裝置、異形出膠針頭可根據客戶要求訂作。
  • A variety of dispensing can be fulfilled.
  • Use Windows2000/XP Operating System.
  • Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.
  • Intelligent automatic needle path to follow for the direction of rotation, so that falls on a triangular piece of conductive adhesive to form three-dimensional shapes.
  • Plastic pistol and working area with heating system.
  • Adopted with "Panasonic" servo motor for XYZ motion control, deliver a precise and stable speedy motion dispensing.
  • Employs a CCD camera which allows to view and precise position the dispenser route, provides tracking route, production counting. Save times in adjusting work & increase productivity.
  • Large data storage capacity. Software with functions of lines, area, lens setting.
  • Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking.
  • Auto needle rotation device, shaped out of plastic needles can be customized according to customer requirements.
應用 Application :

手機、電腦外殼、光碟機、印表機、墨水夾、PC板、LCD、LED、DVD、數位相機、開關、連接器、繼電器、散熱器、半導體等電子業，或與SMT設備連線快速點膠、時鐘、玩具業、醫療器材等

Applied to Mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.

適用於 Suitable for :

導電膠點膠、電磁屏蔽、濾波器、壓鑄件三角形點膠等。

Conductive adhesive dispensing, electromagnetic shielding, furnace filter, casting triangles liquid dispensing etc.

機  型 Model WCE-R500A
工作範圍 Dispensing range (X) 500 *(Y) 500 *(Z) 80 mm
最大速度 Max. Speed 500mm / sec
機械精度 Precision ± 0.015 mm
重覆精度 Repeatiability ± 0.015 mm
操作系統 Operating System Windows2000/XP
傳動系統 Drive System 松下伺服馬達/滾珠絲桿 Panasonic servo motor/ Needle bearing
操作軟件 Operating Software Self-developed dispensing software (CCD software)
電  源 Electric Source AC 220V 50/60Hz ; 1.5KW
機體尺寸 Unit Dimension 1150(L) x 1030(W) x 1720(H) mm
機體重量 Unit Weight 450 kg
另購配備 Optional Device
  1. MARKER點自動對位校準
  2. 多個點膠針頭，可與各種膠槍和儲膠桶連接。
  1. MARKER with auto positioning & adjusting function.
  2. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection.

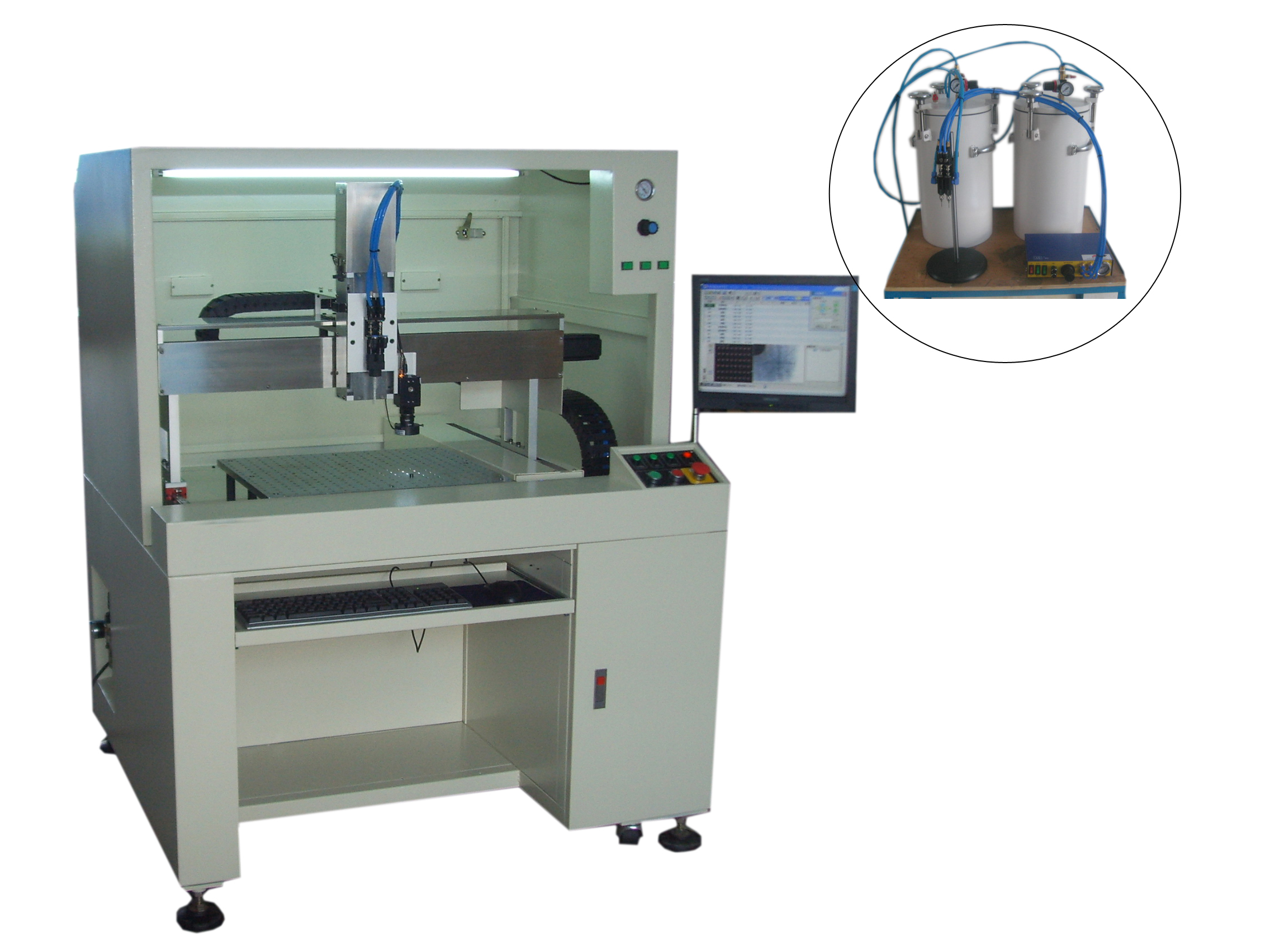

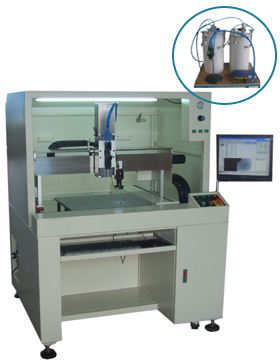

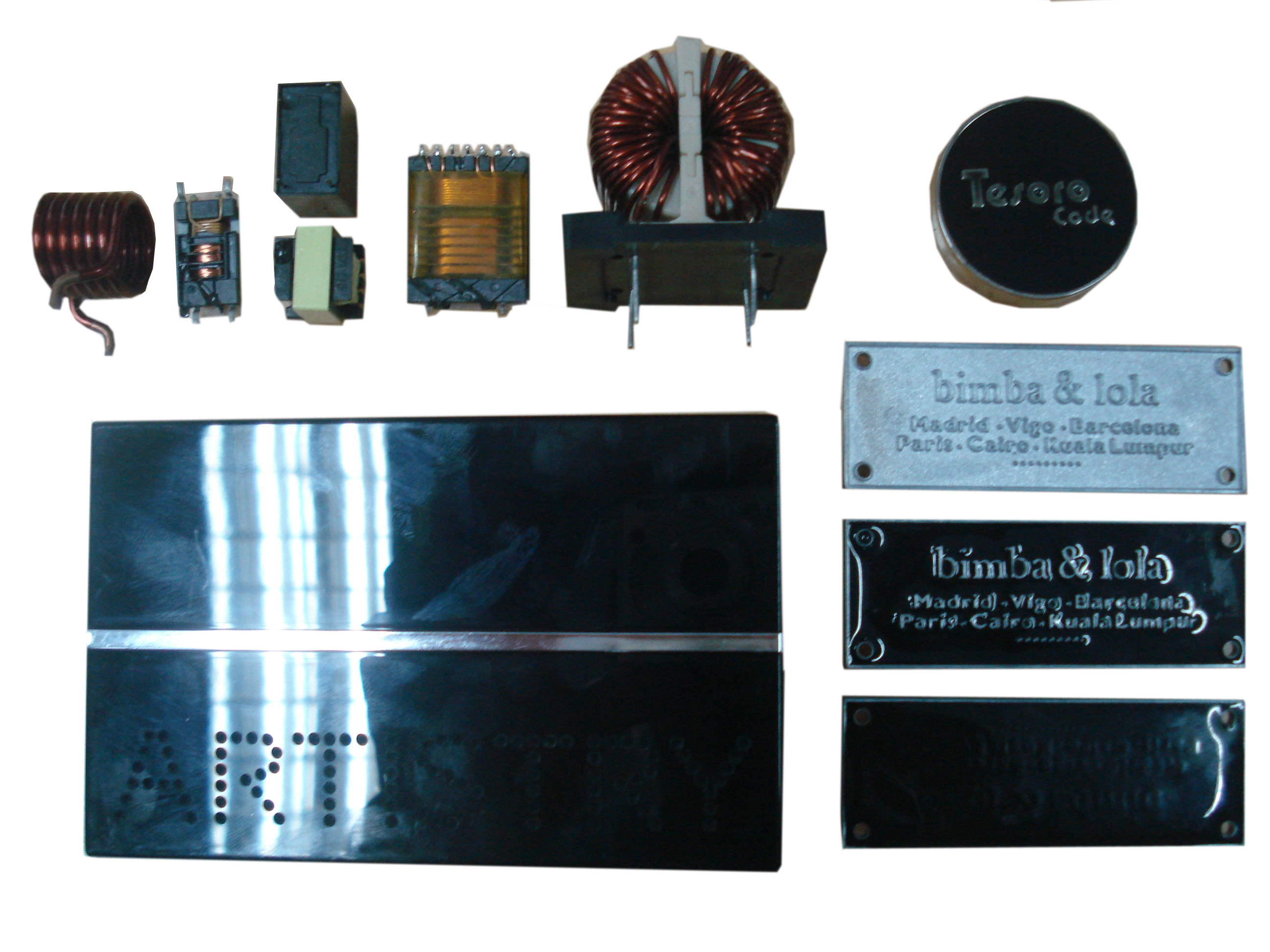

WCE-R600A

Auto AB Glue Dispensing Machine

落地式自動雙液點膠機

  • 具有畫點、線、面、弧、圓、不規則曲線連續補間輸入程
    式等功能。
  • 電腦儲存記憶容量大，且軟體具有平移旋轉運算，區域複製
    及鏡射等功能。
  • 膠量大小粗細、塗膠速度、點膠時間、停膠時間皆可參數設定，出膠量穩定，不漏滴膠。
  • 採用日本松下伺服馬達作為X、Y、Z三軸的運動動力源。使機器運行高速、準確、穩定。
  • 使用Windows2000/XP中英文操作系統。
  • 配置CCD輔助程式、編輯及教導功能。具有視覺影像自動靶標定位辨識功能、移動軌跡位置、追蹤及生產產量統計等功能。以節省且簡化工作、精准定位程序時間，提高生產品質及工作效益。
  • 配有AB壓力膠桶及AB雙液膠槍。
  • 膠槍和工作台含加熱系統。
  • 一種產品點塗多種膠可一次完成。
  • 採用齒輪泵(螺桿泵) 自動配比。
  • A variety of dispensing can be fulfilled.
  • Adopted Gear pump (screw) automatic matching.
  • Plastic pistol and working area with heating system.
  • AB pressure plastic barrel; AB dual liquid glue pistol.
  • Use Windows2000/XP Operating System.
  • Interpolate lines or acres for three dimensional dispensing that accurate continuous path motion.
  • Large data storage capacity. Software with functions of lines, area, lens setting.
  • Adopted with "Panasonic" servo motor for XYZ motion control, deliver a precise and stable speedy motion dispensing.
  • Volume, Size, Speed, Times, Waiting times can be numerically set. Precisely dispense without leaking.
  • Employs a CCD camera which allows to view and precise position the dispenser route, provides tracking route, production counting. Save times in adjusting work & increase productivity.
應用 Application :

手機、電腦外殼、光碟機、印表機、墨水夾、PC板、LCD、LED、 DVD、數位相機、開關、連接器、繼電器、散熱器、半導體等電子業，或與SMT設備連線快速點膠、時鐘、玩具業、醫療器材等

Applied to Mobile phones, computer case, optical drives, printers, ink clip, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators, semiconductors, and other electronics or SMT devices, clocks, toys, medical equipment etc.

適用於流體點膠 Suitable for Fluid Dispensing :

例如: UV膠、EPOXY(黑膠)、白膠、EMI導電膠、SILICON、環氧樹脂、瞬間膠、銀膠、紅膠、錫膏、散熱膏、防焊膏、透明漆、螺絲固定劑等。

Ex: UV glue, EPOXY(vinyl), white glue, EMI conductive glue, SILICON, epoxy, instant glue, silver glue, red glue, paste, thermal grease, anti-paste, lacquer, screw fixation, liquid dispensing etc.

機  型 Model WCE-R600A
工作範圍 Dispensing range (X) 600 *(Y) 500 *(Z) 80 mm
最大速度 Max. Speed 500mm / sec
機械精度 Precision ± 0.015 mm
重覆精度 Repeatiability ± 0.015 mm
操作系統 Operating System Windows2000/XP
傳動系統 Drive System 松下伺服馬達/滾珠絲桿 Panasonic servo motor/ Needle bearing
操作軟件 Operating Software Self-developed dispensing software (CCD software)
電  源 Electric Source AC 220V 50/60Hz ; 1.5KW
機體尺寸 Unit Dimension 1180(L) x 1150(W) x 800(H) mm
機體重量 Unit Weight 500 kg
另購配備 Optional Device
  1. MARKER點自動對位校準
  2. 多個點膠針頭，可與各種膠槍和儲膠桶連接。
  1. MARKER with auto positioning & adjusting function.
  2. Multi-dispensing needles, goes with a variety of glue pistol and plastic barrel connection.
